Product List

Test Accessories

Model

Unit

Use

Specification

Other

HT20COP Coil-on-Plug and Signal Probe

HT20COP coil-on plug and signal probe can catch the ignition waveform of automobile engine easily.

Length 2.5m, BNC connector fits for normal oscilloscope

To avoid injury keep the probe away from moving parts, such as the alternator drive belt and cooling fans

HT25COP Coil-on-Plug and Signal Probe

HT25COP coil-on plug and signal probe can catch the ignition waveform of automobile engine easily.

Length 2.5m, BNC connector fits for normal oscilloscope

To avoid injury keep the probe away from moving parts, such as the alternator drive belt and cooling fans

Integral injection molding makes
the usage more flexible and
the oscilloscope able to adapt
more testing situations.

Universal
version.

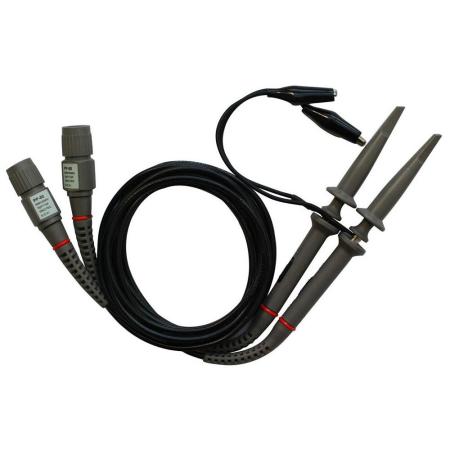

Probe (PP80, PP90, PP150, PP200)

Integral injection molding makes
the usage more flexible and
the oscilloscope able to adapt
more testing situations.

Attenuation ratio: 1× and 10×
optional. Input resistance:
1MΩ: 10MΩ
System bandwidth:
x1:DC-4MHz-80MHz;
x10: DC-60MHz-200MHz.

Universal
version.

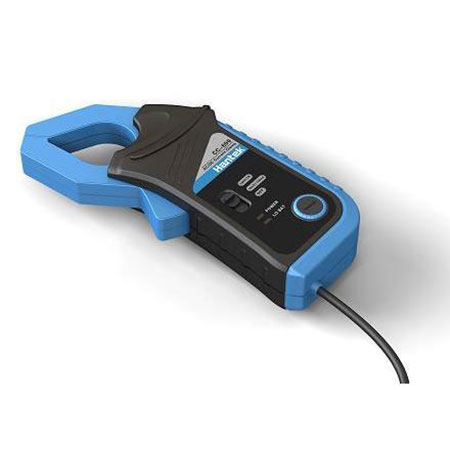

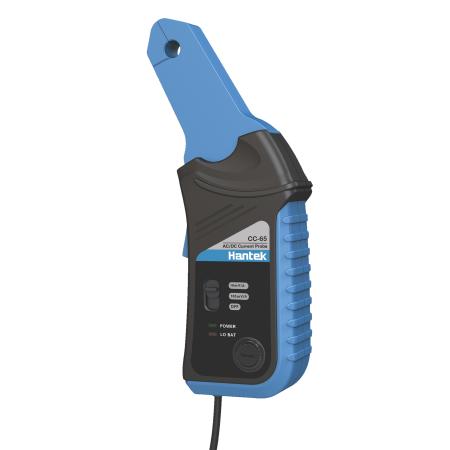

AC/DC Current Clamp CC-65

It is a transducer which allows
your multimeter to measure
current data and enable your
oscilloscope to measure
the current waveforms.

AC/DC Current Clamp,
20kHz Bandwidth
20mA to 65A DC

AC/DC Current Clamp CC-650

It is a transducer which allows
your multimeter to measure
current data and enable your
oscilloscope to measure
the current waveforms.

AC/DC Current Clamp,
400Hz Bandwidth,
20mA to 650A DC

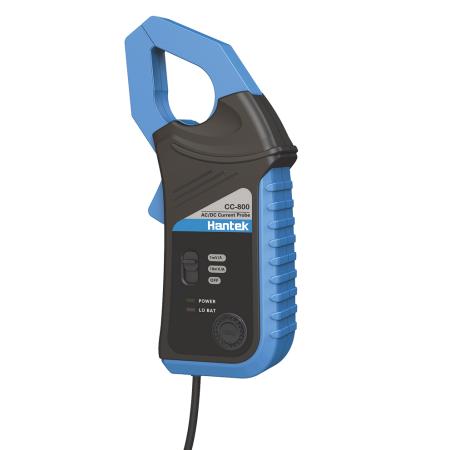

AC/DC Current Clamp CC-800

It is a transducer which allows
your multimeter to measure
current data and enable your
oscilloscope to measure
the current waveforms.

AC/DC Current Clamp,
5KHz Bandwidth,
20mA to 800A DC.

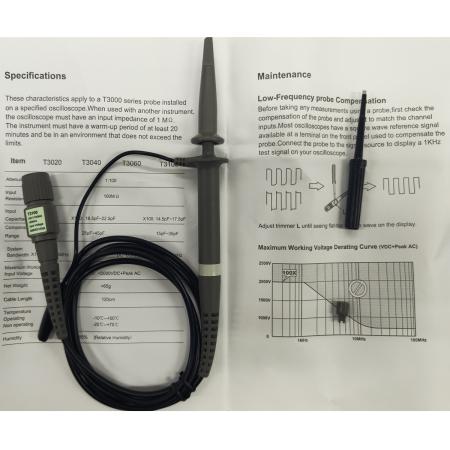

High-Voltage x100 Probe (T3100)

The T3100 probe is designed
as a strong, flexible and
reliable part for the oscilloscope
according to the human body
function.

Attenuation: 100:1;
Input Resistance: 100M ohm;
Bandwidth: DC-100MHz;
Input Voltage:2000VDC+ACpk

Universal
version

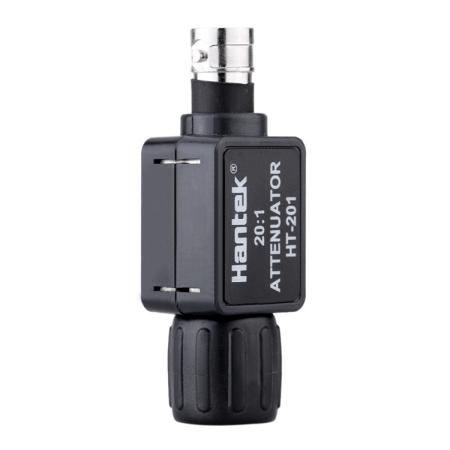

20:1 Attenuator (HT201)

The HT201 has been designed
to allow fuel injector and primary
ignition waveforms to be
measured using Hantek
oscilloscopes.

Specification: Attenuation: 20:1
Bandwidth: 10MHz
Input Res: 1.053M

For vehicle
testing.

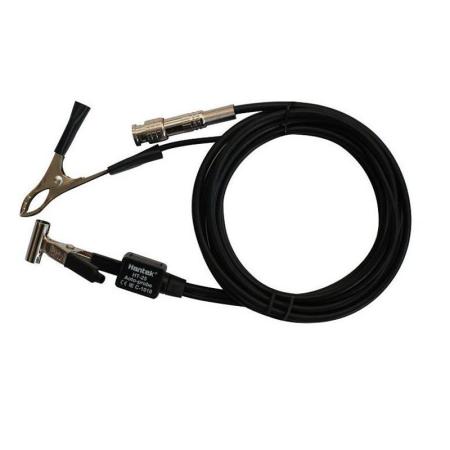

Auto Ignition Probe (HT25)

Auto ignition probe is a kind of
inductive capacitance sensor,
it must match with an
oscilloscope.

Lead length 2.5 meters, the decay
of up to 10,000:1.

For vehicle
testing.

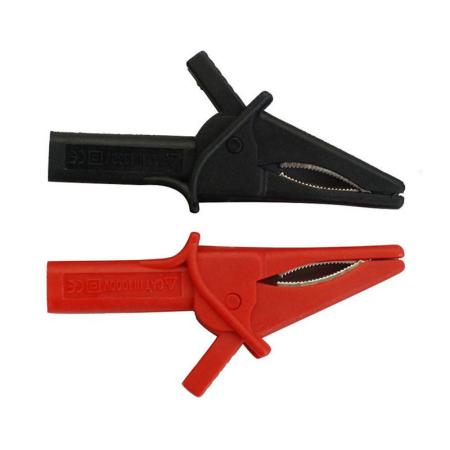

Large Dolphin/Gator Clips (HT18A)

The dolphin/gator clips are fully
insulated with a 4 mm socket
in the handle, offering an easy
connection to the HT30A auto
test cable.

Length: 85 mm, Height: 38 mm
Depth: 16.5 mm
Clamping limit: 30 mm
Contents:1pc X Red Clip
1pc X Black Clip

Be able to
use with
HT30A.

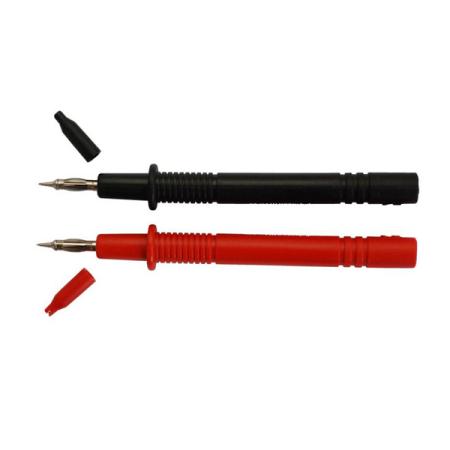

Multimeter Probe (HT19)

The multimeter probes offer
a quick and easy solution,
where a permanent connection
is not required.

Length: 131 mm Diameter: 10 mm
Contents:1pc X Red Probe,
1pc X Black Probe

Be able to
use with
HT30A and
HT307.

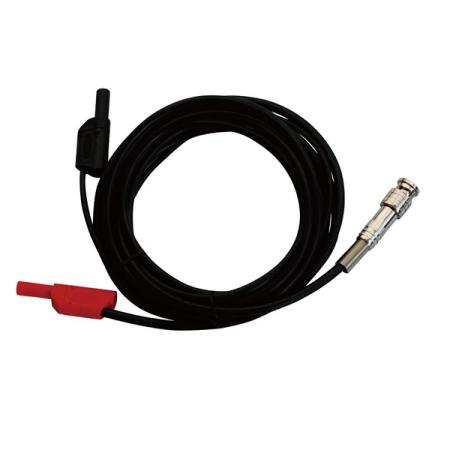

Auto Test Leads (HT30A)

It's a special line for assisting
auto measurement instruments
to test various types of signals.

Test lead of a male BNC
connector to (2) 4mm connectors.
4mm connectors are coded
in two colors, black and red.
Lead length 30 meter.

For vehicle
testing.

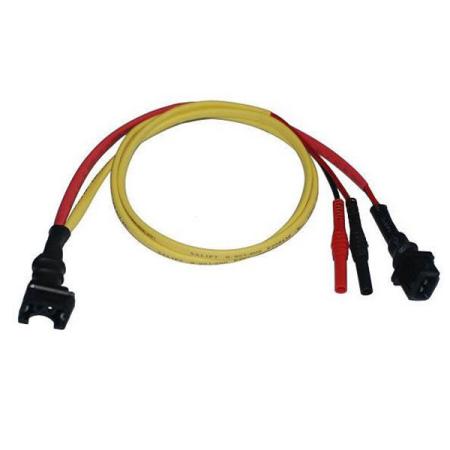

Breakout Leads(HT301)

This breakout lead is easy to
take voltage readings from
numerous sensors in vehicle
engine compartment.

Connect the breakout lead
plugs into the existing wire
loom, and insert the two 4mm
banana plugs into the scope
using test lead HT30A, the
output signal can be taken.

For vehicle
testing.

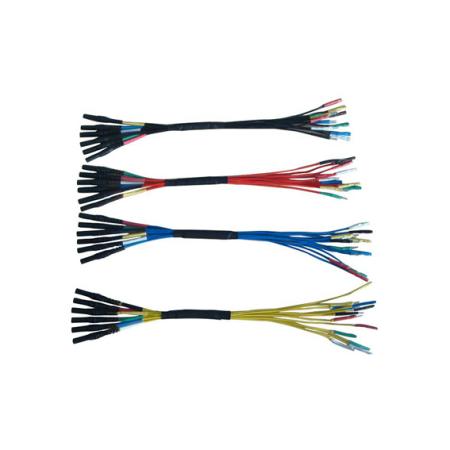

6-Way Breakout Leads (HT306)

The lead is easy to access the
existing automotive wiring
harness interface, convenient to
read all kinds of sensor signal.

The lead with 4 kinds of joint
size: 0.6mm, 1.5mm, 2.3mm
and 2.8 mm.

For vehicle
testing.

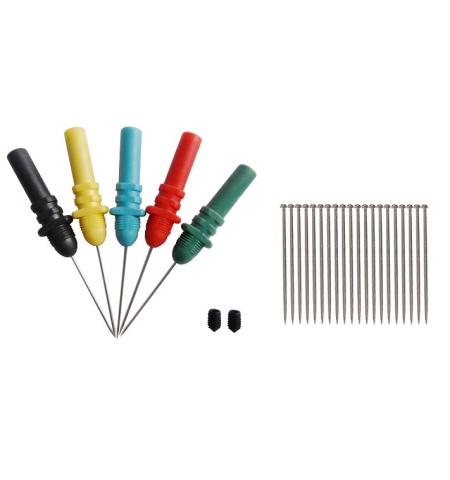

Acupuncture Probe Set (HT307)

This acupuncture probe is a
back pinning, piercing and
repairable probe.

Contents: 5pcs complete
acupuncture probes, 2pcs screws,
20pcs replacement needles.

With
replacement
needles.

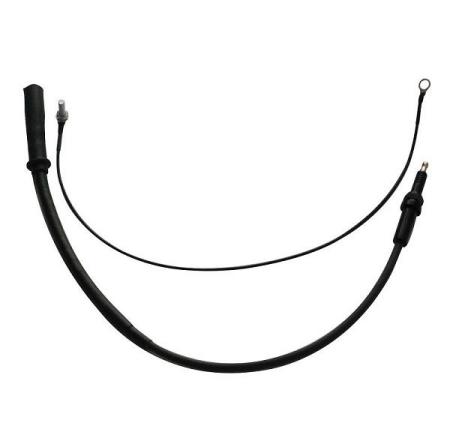

COP Extension Cord (HT308)

Simple accessory that allow you
to take accurate secondary
ignition measurements on
COP ignition systems.

Designed to aid diagnostics on
secondary ignition circuits by
allowing an HT measurement to
be made when there are no,
or limited access, to any
spark plug leads.

For vehicle
testing.

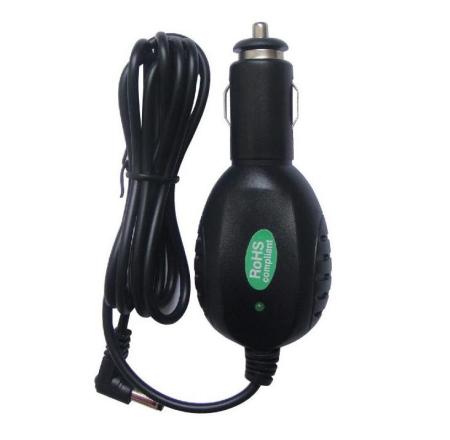

Auto Power Adapter (HT310)(Discontinued)

Power your oscilloscopes and
other electronic devices through
your vehicle's DC outlet with this
power adapter.

Input DC: 12-24VDC;
Output: 12V 1500mA
Cord Length: 1.45m.

Optional
car power
adapter and
cord for
oscilloscope.

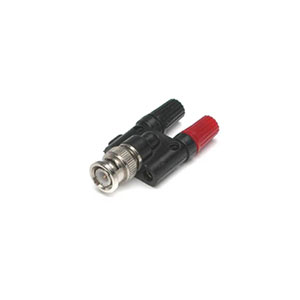

BNC to 4 mm Adapter (HT311)

The BNC to 4mm adapter
connects two 4mm banana
plugs to a BNC socket.

BNC Impedance: 50Ω
Voltage: 500V, Current: 3A Max.
Resistance: <0.8mΩ

Signal is
connected to
red terminal

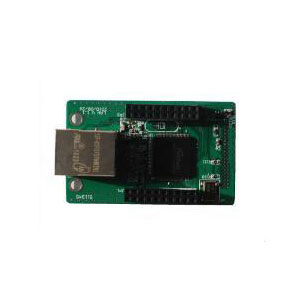

LAN PCB (HT312)

This board is factory installed on
oscilloscopes as an optional
interface and should require
no futher connections to be
made to it.

The LAN Interface PCB uses a
High Impedance Transceiver (HIT)
for signal transceiving in order to
utilize a bus topology on the LAN.

Optional
interface for
oscilloscope.

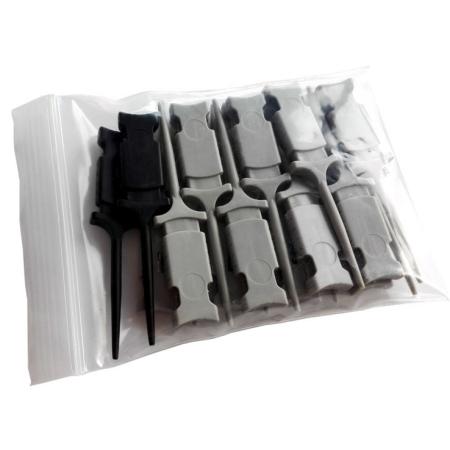

Mini Test Hook( HT321)

Set of 18 pcs mini test hooks
for logic analyzers and other
measuring instruments.

Hook connects to 1.65mm dia
wire or smaller.

Apply to
logic analyzer.

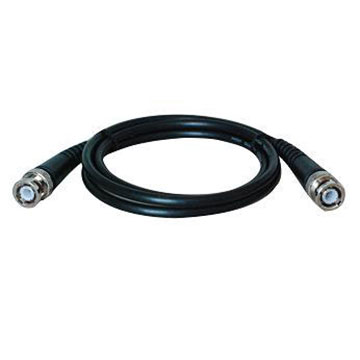

BNC to BNC Cable (HT322)

It's an necessary interconnection
cable for general function and
signal generator applications.

1m BNC male to BNC male
cable; Frequency range:DC~1GHz;
Nominal impedance: 50Ω;
Coaxial cable.

Male BNC
connectors on
both ends.

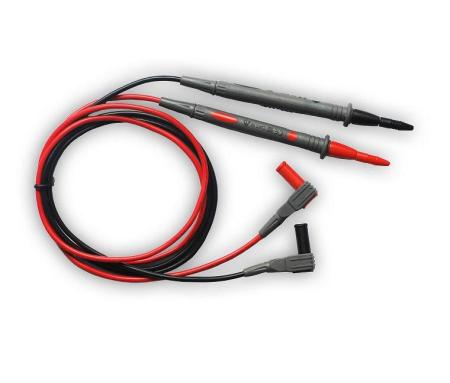

Multimeter Probe (HT325)

Meter probe with standard plug
(4mm), suitable for universal.

CATIII 1000V, double insulation;
Max. rated current: 16A ;
Content: 1pc x red probe,
1pc x black probe

Adapt for
all Hantek
handheld
oscilloscope.

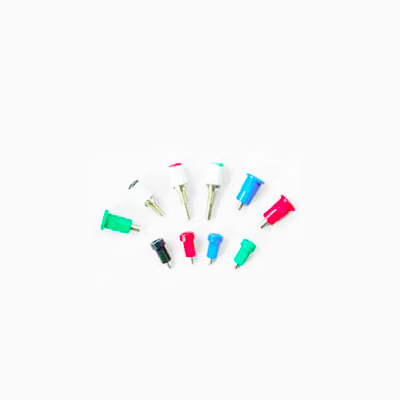

Multimeter Banana Socket (HT326)

11.4mm multimeter banana plug
and socket, terminal test hole
and connector.

Set screw, high quality, 3 types
and many color available (red,
black, green, blue).

Accessory
for multimeter.

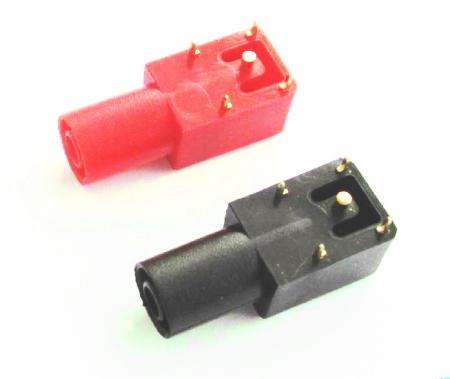

Multimeter Socket (HT323)

The external multimeter socket
offer a quick and easy solution,
where a permanent connection
is not required.

Size: 11.4mm
Contents:
1pc x red socket
1pc x black socket

Accessory
for multimeter.
