Hantek365F - Hantek Electronic & Your testing solution provider

OneDrive Download

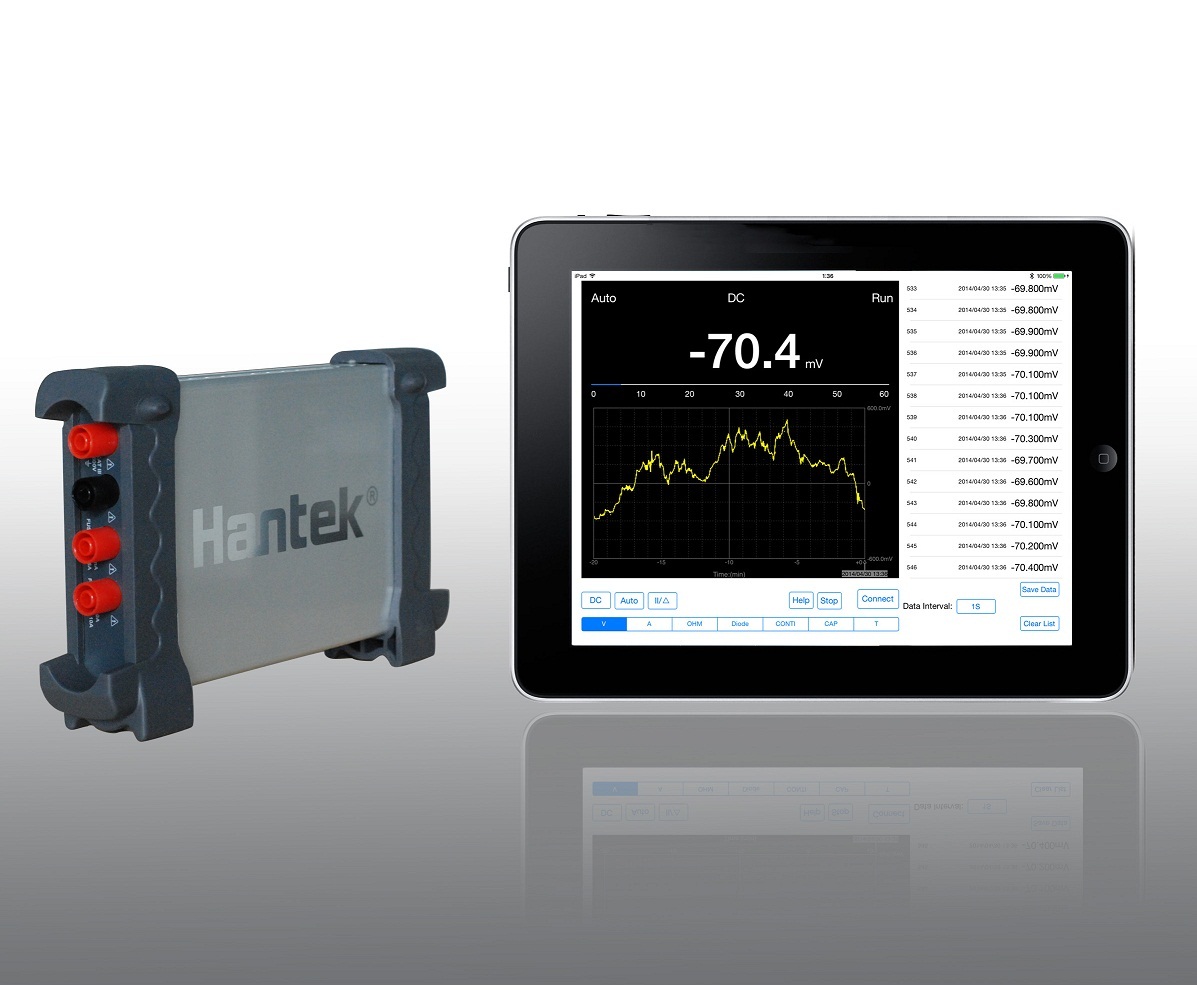

Long time record voltage, current, resistance, capacitance and on-off etc. in real time, and create trend curves.
Safe electrical isolation, true RMS measurement and support iPad, Connect to iPad via Bluetooth.
Plug play USB interface, build-in lithium battery.
Simple, handy and flexible control software.
Software support: iPad, Windows 2000, Windows 7, Windows XP, Win8, iPad.
Only can be connected to a computer or notebook via a Bluetooth adapter purchased from us. Bluetooth adapter optional.

Function	Range	Accuracy	Resolution
DC Voltage	60.00mV	±1% ±1 digit	10uV
	600.00mV		100uV
	6.00V		1mV
	60.00V		10mV
	60.00V		100mV
	800V		1V
AC Voltage	60.00mV	±1%±3 digit	10uV
	600.00mV		100uV
	6.00V		1mV
	60.00V		10mV
	600.0V		100mV
DC Current	60.00mA	±1.5%±1 digit	10uA
	600.00mA	±1%±1 digit	100uA
	6.000A	±1.5%±3 digit	1mA
	10.00A	±1.5%±3 digit	10mA
AC Current	60.00mA	±1.5%±1 digit	10uA
	600.00mA	±1%±1 digit	100uA
	6.000A	±1.5%±3 digit	1mA
	10.00A	±1.5%±3 digit	10mA
Resistance	600	±1%±3 digit	0.1Ω
	6.000 K	±1%±1 digit	1Ω
	60.00 K		10Ω
	600.0 K		100Ω
	6.000 M		1KΩ
	60.00 M	±1.5%±3 digit	10KΩ
Capacitance	40.00nF	±1%±1 digit	10pF
	400.00nF		100pF
	4.000uF		1nF
	40.00uF		10pF
	400.0uF		100pF
	Attention: The smallest capacitance value that can be measured in 5nF
Diode	0V~2.0V

Optional Accessories:

Support connect to windows via Bluetooth

Hantek365E(F) Bluetooth Driver

2017-01-05

Hantek365 Driver

2023-08-31

Hantek365 Software

2015-01-04

Hantek365 Manual

2015-01-04
