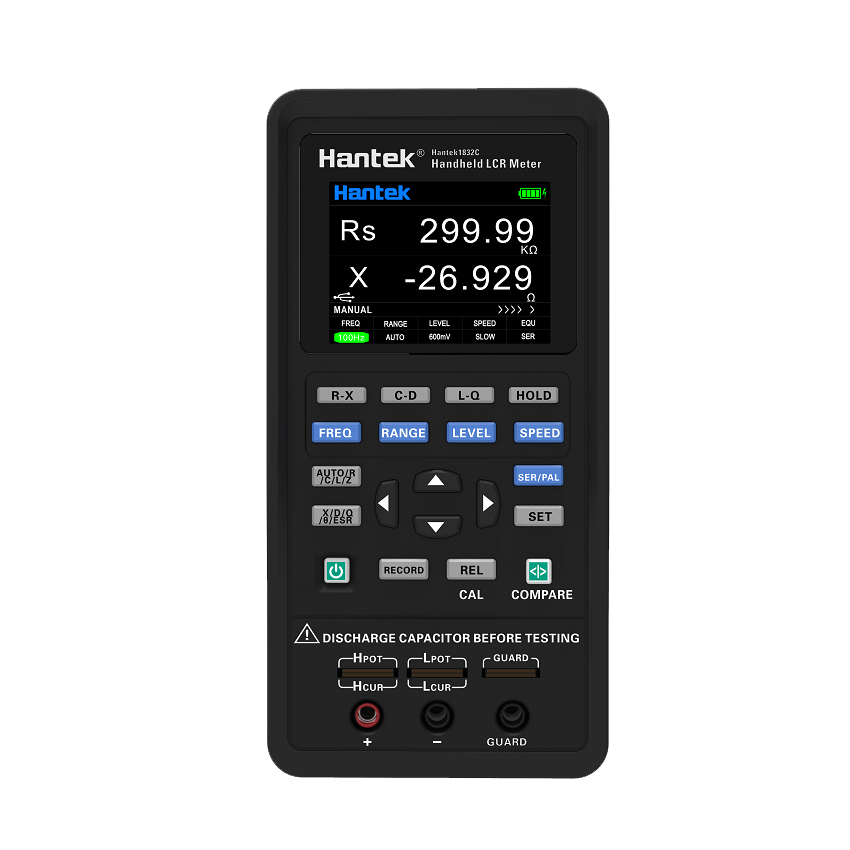

Hantek1832C/Hantek1833C handheld LCR Meter is a portable handheld measuring instrument to measure the parameters of the component such as inductance, capacitance, resistance and so on. small volume, powered by 5V lithium battery, it can meet the requirements of desktop LCR application, and can also be applied to flow measurement and handheld measurement.

100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz 10 typical test frequency (Hantek1832C) 7 typical test frequency
2.8 inch TFT LCD, Switch between Chinese and English
HD display, dual display of measurement data, the result is clear
Support data record analysis
Support PC upper computer, easy to control and measure remotely
Test lead: 3 terminal/5 terminal switch
Measuring speed: high speed/intermediate speed/low speed switch
Range: support manual/auto switch, easy to do quick measurement
LCR adopted rechargeable design, Large capacity lithium battery, super standby
Double shock protection sleeve, all-round protection, shakeproof, fall-arrest, protect
the machine from damage, longer use time, more comfortable measurement
Bracket design, easy to put and measure

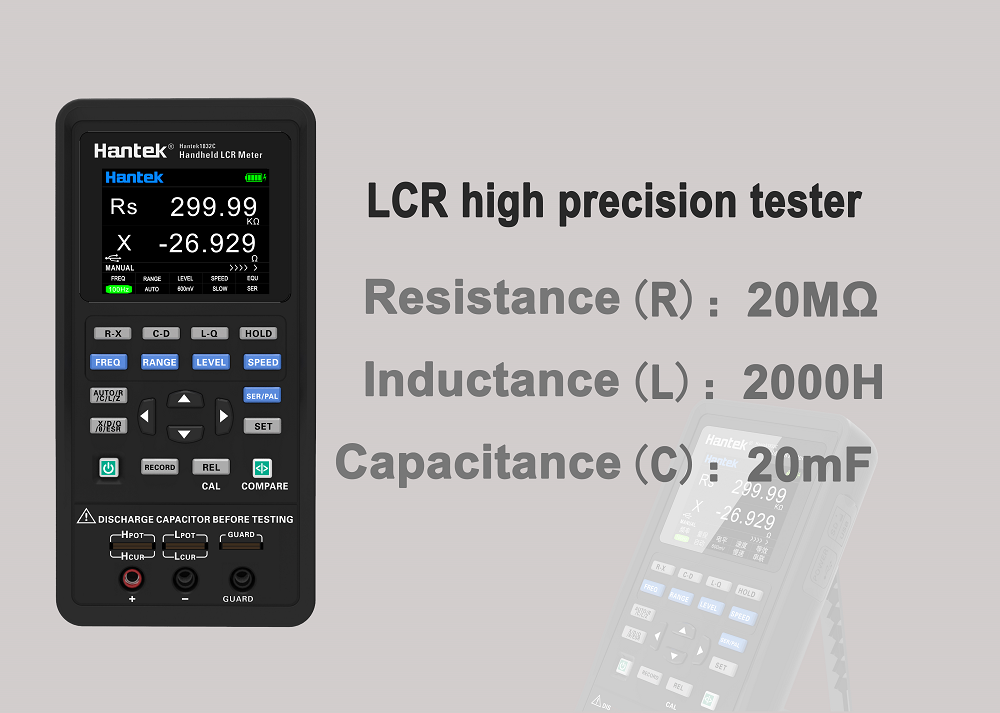

LCR high precision test instrument:

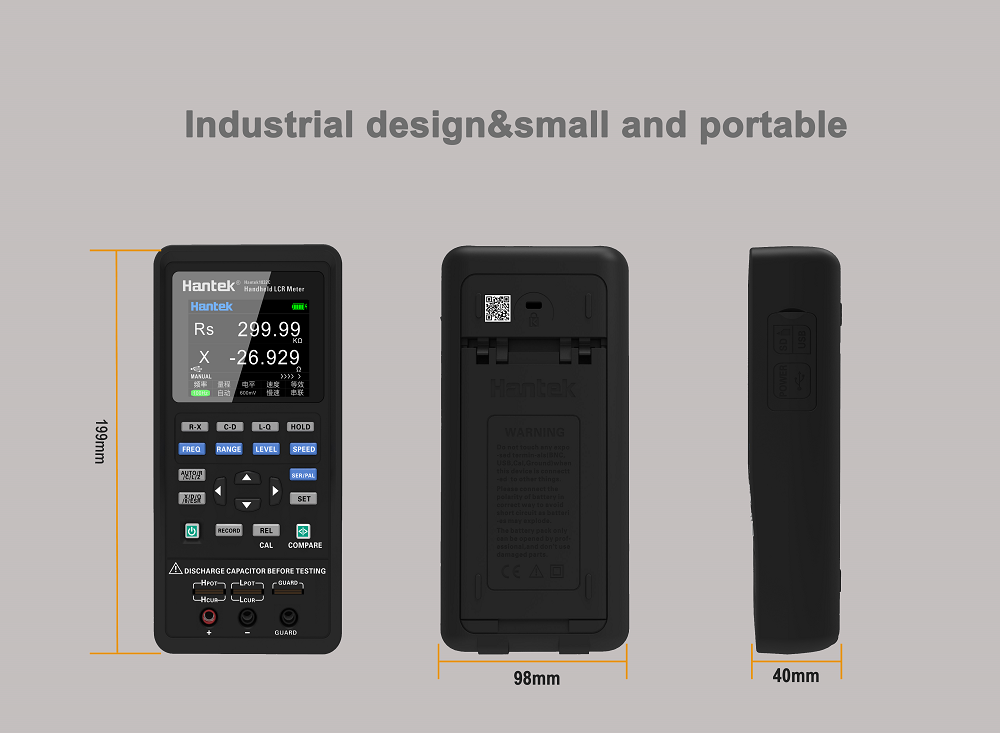

Industrial design&small and portable:

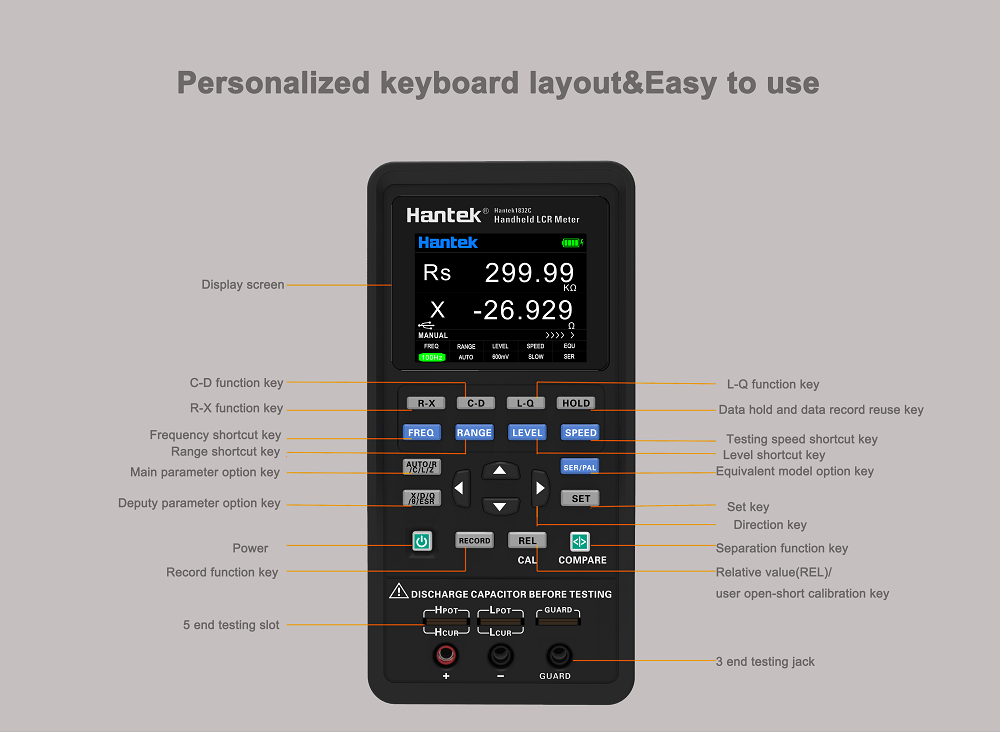

personalized keyboard layout&easy to use:

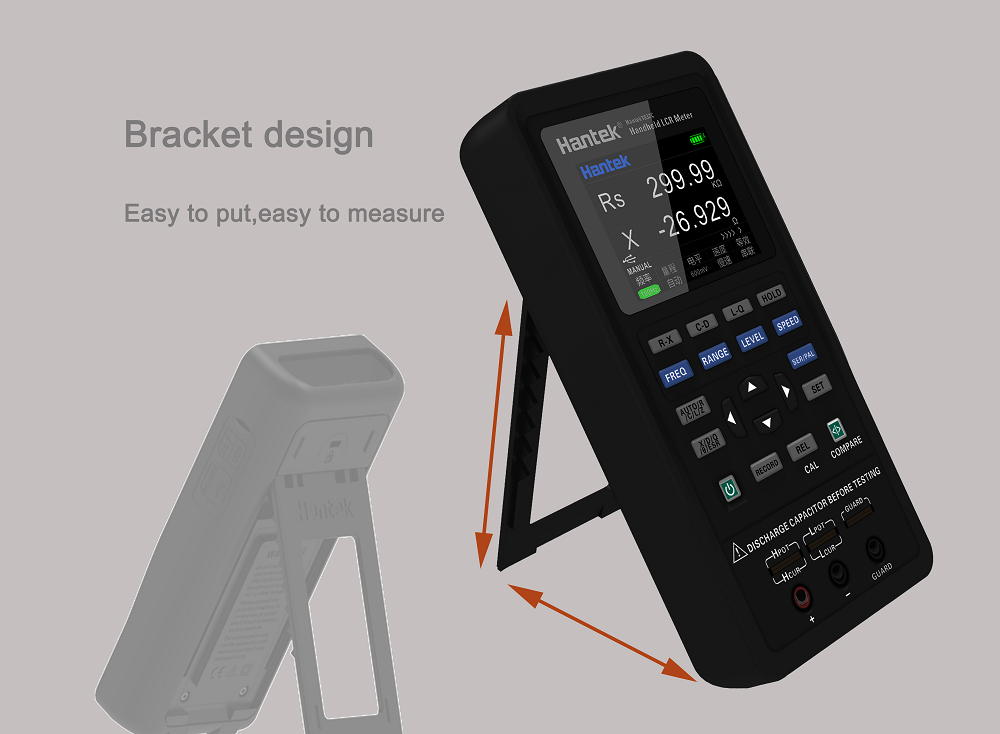

Bracket design:

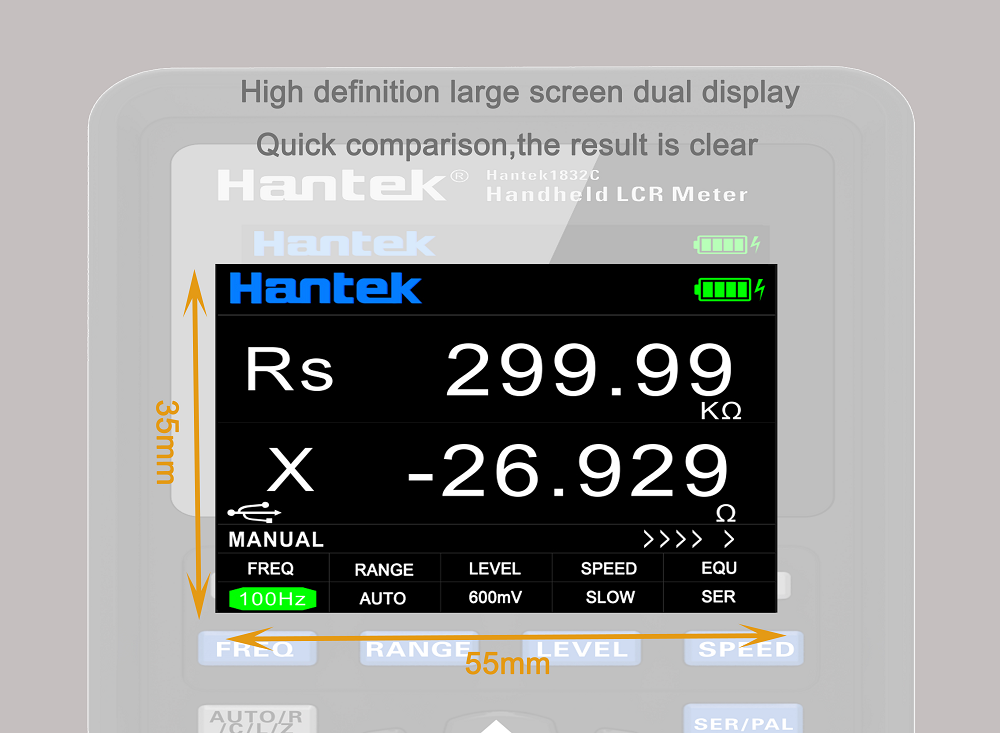

High definition large screen dual display:

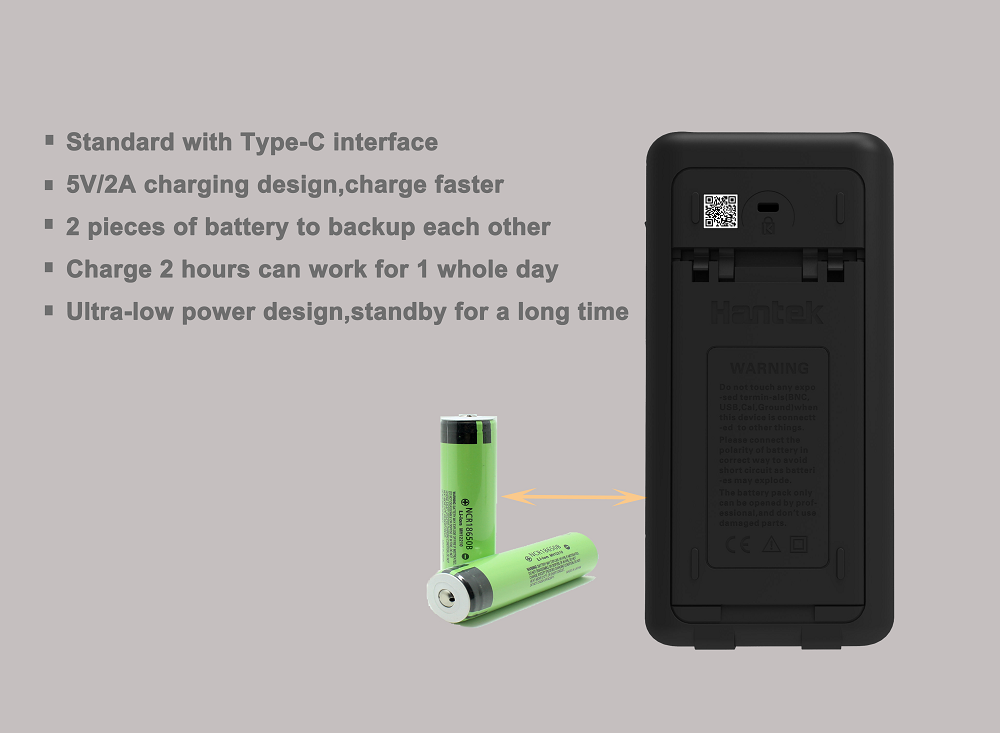

Charge 2 hours can work for 1 whole day:

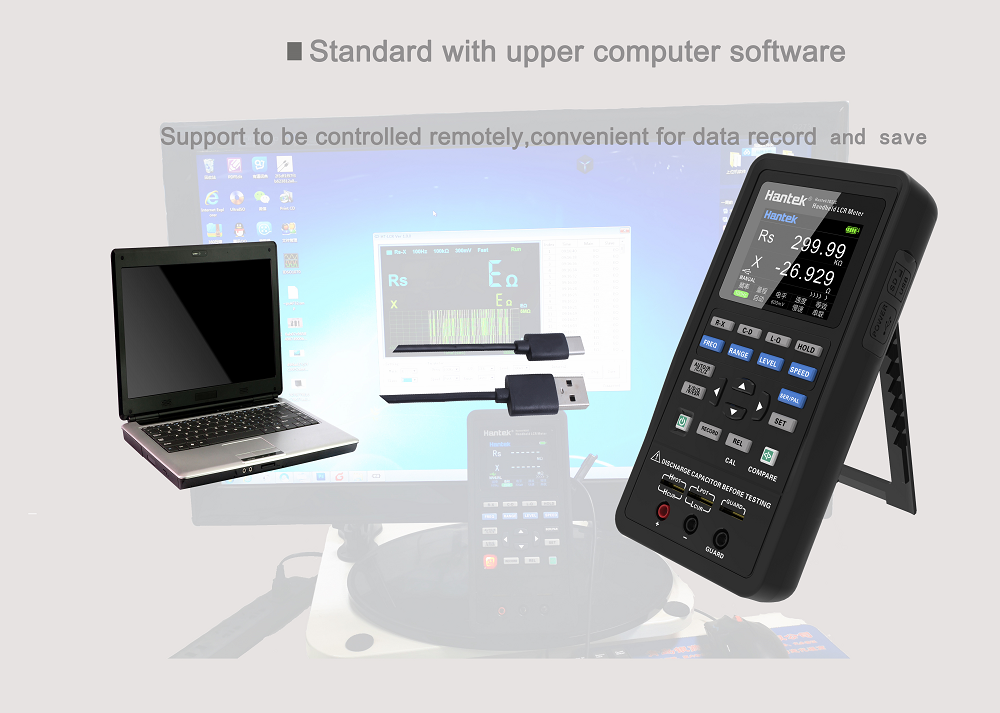

Standard with upper computer software, easier to measure:

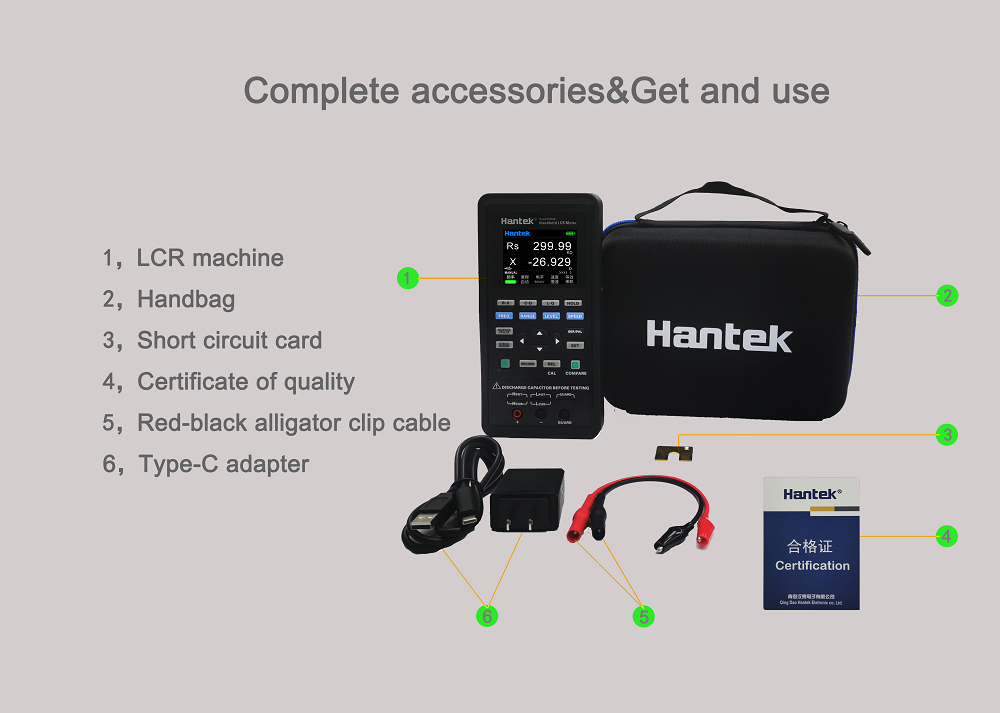

Complete accessories&get and use:

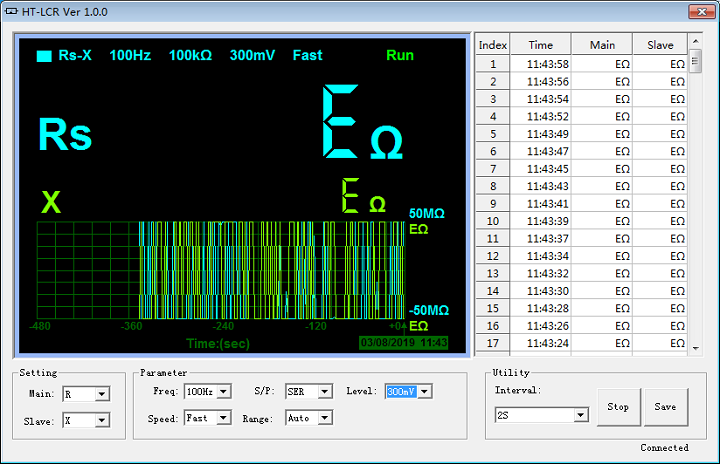

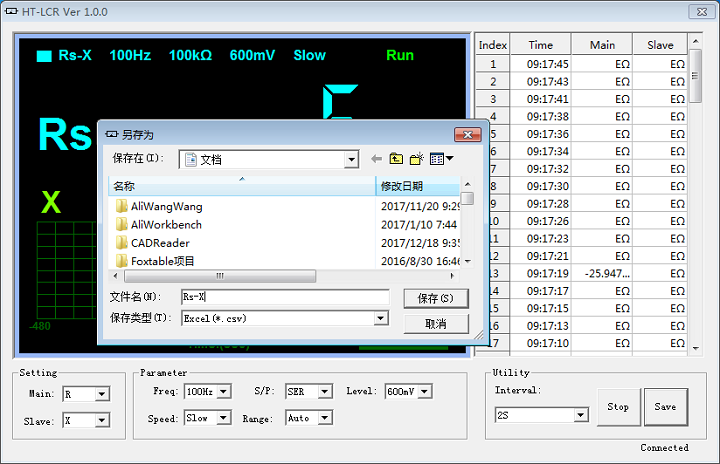

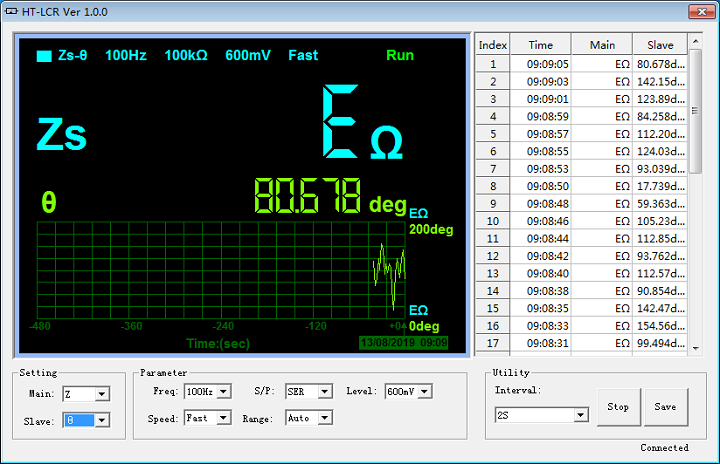

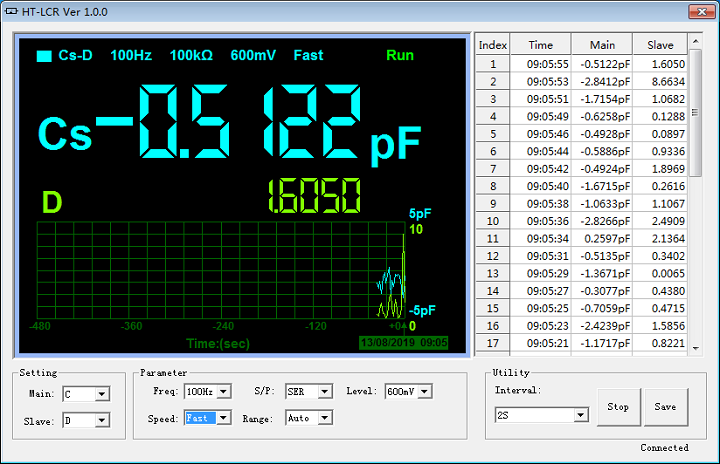

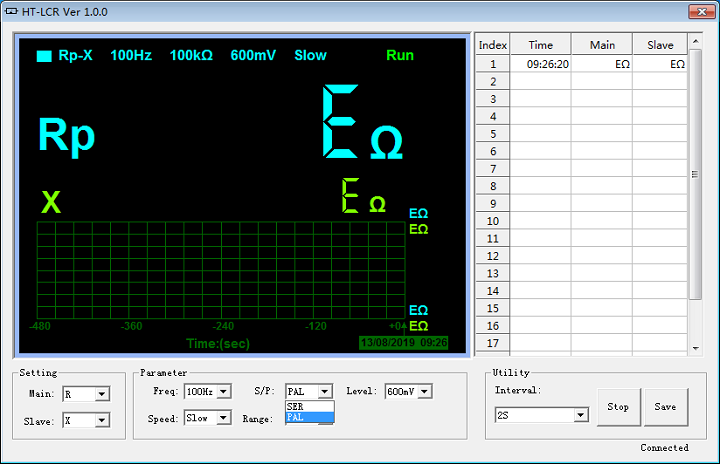

Software function:

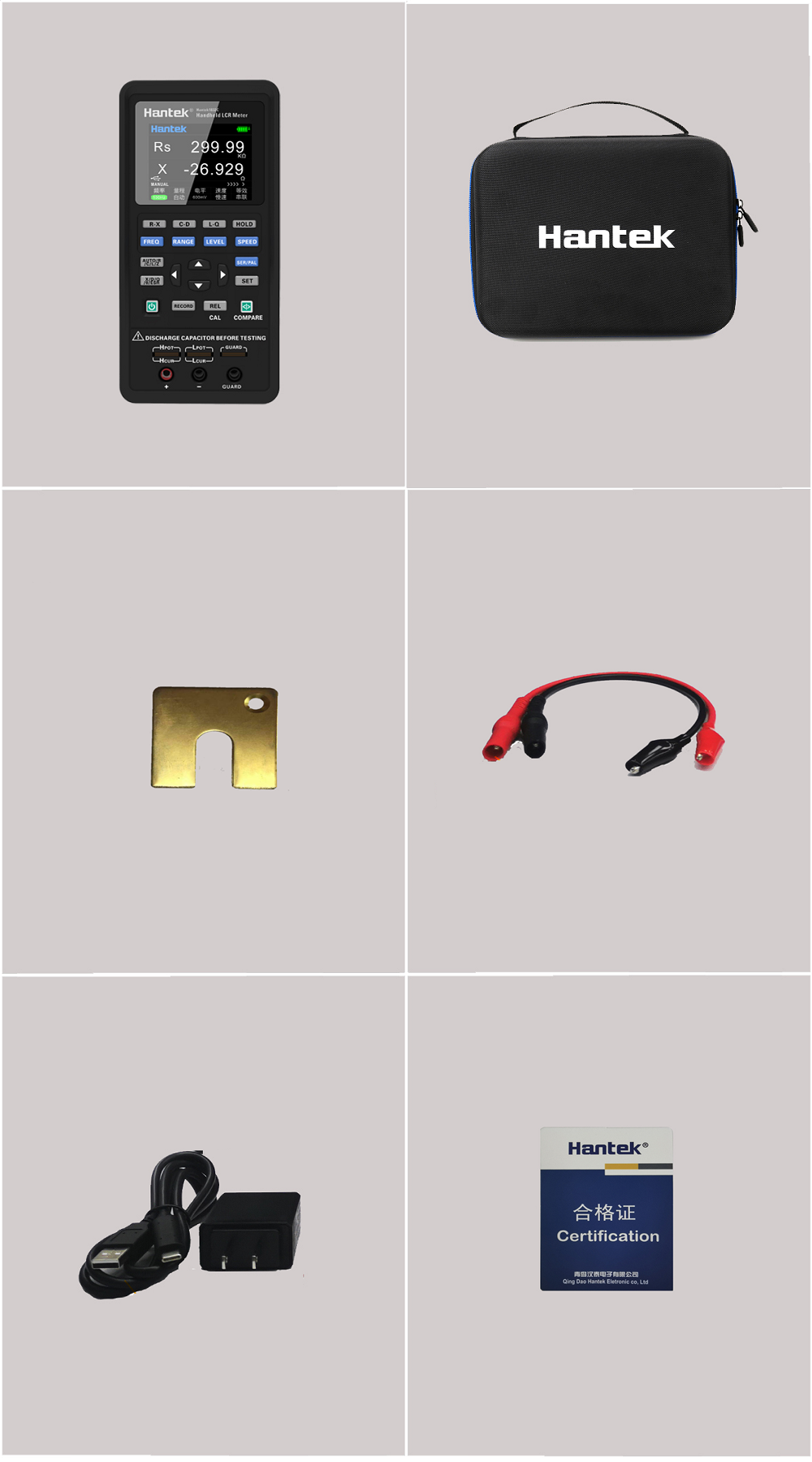

Accessories:

Model	Hantek1832C		Hantek1833C
Test frequency	100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz		100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz
Accuracy	0.30%
Equivalent Circuit	series, parallel
Test level	0.6Vrms		0.6Vrms, 0.3Vrms
Measurement way	manual, auto
Display screen	2.8 inch TFT LCD
Measurement parameters	principle parameter: L/C/R/Z deputy parameter: X/D/Q/θ/ESR
Principle parameter	L/C/R/Z
Deputy parameter	X/D/Q/θ/ESR
Inductance Measurement range	(L) 0-2000H
Capacitance Measurement range	(C) 0-20mF
Resistance Measurement range	(R) 0-20MΩ
Measurement speed	high speed(4 times/s), intermediate speed(twice/s), low speed(once/s)
Reset function	open circuit calibration, short-circuit calibration
Test terminal configuration	3 terminal, 5 terminal
General feature	standard with 1.Type-C data cable; 2.power adapte; 3.short circuit card; 4.red and black rubber plug; 5.large capacity lithium battery
Capacitance C and dissipationD
100Hz/120Hz/400Hz
Range	Display range	Accuracy Ce	Accuracy De	Recommended equivalent mode
20mF	4.000mF~20.000mF	8.00%+5 digits	0.08	series
4mF	400.0μF~3.9999mF	2.00%+3 digits	0.02	series
400μF	40.00μF~399.99μF	0.60%+2 digits	0.006	series
40μF	4.000μF~39.999μF	0.40%+2 digits	0.004	series
4μF	400.0nF~3.9999μF	0.40%+2 digits	0.004	----
400nF	40.00nF~399.99nF	0.4%+2 digits	0.004	parallel
40nF	4.000nF~39.999nF	0.5%+3 digits	0.005	parallel
4nF	0pF~3.999nF	1.5%+5 digits	------	parallel
1KHz/4kHz
Range	Display range	Accuracy Ce	Accuracy De	Recommended equivalent mode
1000uF	400.0uF~999.9uF	3.00%+5 digits	0.03	series
400μF	40.00μF~399.99μF	1.50%+3 digits	0.015	series
40μF	4.000μF~39.999μF	0.60%+2 digits	0.006	series
4μF	400.0nF~3.9999μF	0.40%+2 digits	0.004	-----
400nF	40.00nF~399.99nF	0.4%+2 digits	0.004	parallel
40nF	4.000nF~39.999nF	0.6%+3 digits	0.006	parallel
4nF	400.0pF~3.9999nF	0.6%+3 digits	0.006	parallel
400pF	0.0pF~399.9pF	3%+5 digits	------	parallel
10KHz
Range	Display range	Accuracy Ce	Accuracy De	Recommended equivalent mode
100μF	40.00μF~100.00μF	4.00%+5 digits	0.04	series
40μF	4.000μF~39.999μF	2.0%+3 digits	0.02	series
4μF	400.0nF~3.9999μF	0.60%+2 digits	0.006	series
400nF	40.00nF~399.99nF	0.4%+2 digits	0.004	series
40nF	4.000nF~39.999nF	0.4%+2 digits	0.004	------
4nF	400.0pF~3.9999nF	0.4%+2 digits	0.004	parallel
400pF	40.00pF~399.99pF	0.6%+3 digits	0.006	parallel
40pF	0.00pF~39.99pF	2.5%+5 digits	------	parallel
40KHz/50KHz
Range	Display range	Accuracy Ce	Accuracy De	Recommended equivalent mode
100μF	40.00μF~100.00μF	6.00%+5 digits	0.06	series
40μF	4.000μF~39.999μF	4.0%+3 digits	0.04	series
4μF	400.0nF~3.9999μF	1.0%+2 digits	0.01	series
400nF	40.00nF~399.99nF	0.6%+2 digits	0.006	series
40nF	4.000nF~39.999nF	0.6%+2 digits	0.006	------
4nF	400.0pF~3.9999nF	0.6%+2 digits	0.006	parallel
400pF	40.00pF~399.99pF	1%+3 digits	0.01	parallel
40pF	0.000pF~39.999pF	3%+5 digits	------	parallel
75KHz/100KHz
Range	Display range	Accuracy Ce	Accuracy De	Recommended equivalent mode
10μF	4.000μF~10.000μF	8.0%+20 digits	0.08	series
4μF	400.0nF~3.9999μF	5.0%+10 digits	0.05	series
400nF	40.00nF~399.99nF	1.5%+5 digits	0.015	series
40nF	4.000nF~39.999nF	1%+2 digits	0.01	series
4nF	400.0pF~3.999nF	1%+2 digits	0.01	------
400pF	40.00pF~399.99pF	1.5%+2 digits	0.015	parallel
40pF	4.000pF~39.999pF	2%+5 digits	0.02	parallel
4pF	0.000pF~3.999pF	5%+10 digits	------	parallel
Inductance L and quality factor
100Hz/120Hz/400Hz
Range	Display range	Accuracy Le	Accuracy De*	Recommended equivalent mode
1000H	400.0H~999.9H	2.00%+3 digits	0.02	parallel
400H	40.000H~399.99H	0.60%+2 digits	0.006	parallel
40H	4.000H~39.999H	0.40%+2 digits	0.004	parallel
4H	400.0mH~3.9999H	0.40%+2 digits	0.004	----
400mH	40.00mH~399.99mH	0.4%+2 digits	0.004	series
40mH	4.000mH~39.999mH	0.6%+3 digits	0.006	series
4mH	0uH~3.999mH	3.0%+5 digits	------	series
1kHz/4KHz
Range	Display range	Accuracy Le	Accuracy De*	Recommended equivalent mode
1H	400.0mH~999.9mH	1.50%+3 digits	0.015	parallel
400mH	40.00mH~399.99mH	0.4%+2 digits	0.004	parallel
40mH	4.000mH~39.999mH	0.4%+2 digits	0.004	------
4mH	400.0uH~3.9999mH	0.4%+2 digits	0.004	series
400uH	40.00uH~399.99uH	0.8%+3 digits	0.008	series
40uH	0.00uH~39.99uH	3.0%+5 digits	------	series
10kHz
Range	Display range	Accuracy Le	Accuracy De*	Recommended equivalent mode
100H	40.00H~100.00H	2.0%+3 digits	0.02	parallel
40H	4.000H~39.999H	0.60%+2 digits	0.006	parallel
4H	400.0mH~3.9999H	0.40%+2 digits	0.004	parallel
400mH	40.00mH~399.99mH	0.4%+2 digits	0.004	------
40mH	4.000mH~39.999mH	0.4%+2 digits	0.004	series
4mH	400.0uH~3.9999mH	1%+3 digits	0.01	series
400uH	0.0uH~399.9uH	3.0%+5 digits	------	series
40kHz/50kHz
Range	Display range	Accuracy Le	Accuracy De*	Recommended equivalent mode
1H	400.0mH~999.9mH	2.0%+4 digits	0.02	parallel
400mH	40.00mH~399.99mH	0.8%+2 digits	0.008	parallel
40mH	4.000mH~39.999mH	0.8%+2 digits	0.008	------
4mH	400.0uH~3.9999mH	0.8%+2 digits	0.008	series
400uH	40.00uH~399.99uH	1.5%+3 digits	0.015	series
40uH	0.000uH~39.999uH	4.0%+5 digits	------	series
75KHz/100kHz
Range	Display range	Accuracy Le	Accuracy De	Recommended equivalent mode
100mH	40.00mH~399.99mH	2.5%+2 digits	0.025	parallel
40mH	4.000mH~39.999mH	1.5%+2 digits	0.015	parallel
4mH	400.0uH~3.9999mH	1.0%+2 digits	0.01	------
400uH	40.00uH~399.99uH	1.0%+2 digits	0.01	series
40uH	4.000uH~39.999uH	1.5%+5 digits	0.015	series
4uH	0.000uH~3.999uH	4%+10 digits	------	series
Impedance Z and phase angle
100Hz/120Hz/400Hz/1kHz/10kHz
Range	Display range	Accuracy Ze	Accuracy	Recommended equivalent mode
20MΩ	4.000MΩ~20.000MΩ	3.0%+10 digits	3.4°	parallel
4MΩ	400.0kΩ~3.9999MΩ	1.2%+3 digits	0.7°	parallel
400kΩ	40.00kΩ~399.99kΩ	0.3%+3 digits	0.2°	parallel
40kΩ	4.000kΩ~39.999kΩ	0.25%+2 digits	0.1°	------
4kΩ	400.0Ω~3.9999kΩ	0.25%+2 digits	0.1°	series
400Ω	40.00Ω~399.99Ω	0.25%+2 digits	0.1°	series
40Ω	4.000Ω~39.999Ω	0.5%+3 digits	0.3°	series
4Ω	0.4000Ω~3.9999Ω	2.0%+3 digits	1.1°	series
0.4Ω	0.0000Ω~0.3999Ω	4.0%+3 digits	------	series
40kHz/50KHz
Range	Display range	Accuracy Ze	Accuracy	Recommended equivalent mode
20MΩ	4.000MΩ~20.000MΩ	7.0%+41 digits	4.0°	parallel
4MΩ	400.0kΩ~3.9999MΩ	2.5%+3 digits	1.4°	parallel
400kΩ	40.00kΩ~399.99kΩ	1.0%+4 digits	0.6°	parallel
40kΩ	4.000kΩ~39.999kΩ	1.0%+4 digits	0.6°	------
4kΩ	400.0Ω~3.9999kΩ	0.5%+3 digits	0.3°	series
400Ω	40.00Ω~399.99Ω	0.5%+3 digits	0.3°	series
40Ω	4.000Ω~39.999Ω	0.7%+4 digits	0.4°	series
4Ω	0.4000Ω~3.9999Ω	2.0%+6 digits	1.1°	series
0.4Ω	0.0000Ω~0.3999Ω	5.0%+10 digits	------	series
75KHz/100kHz
Range	Display range	Accuracy Ze	Accuracy	Recommended equivalent mode
20MΩ	4.000MΩ~20.000MΩ	9.0%+20 digits	5.2°	parallel
4MΩ	400.0kΩ~3.9999MΩ	4.0%+10 digits	2.3°	parallel
400kΩ	40.00kΩ~399.99kΩ	1.5%+4 digits	0.9°	parallel
40kΩ	4.000kΩ~39.999kΩ	1.0%+2 digits	0.6°	parallel
4kΩ	400.0Ω~3.9999kΩ	0.7%+2 digits	0.4°	------
400Ω	40.00Ω~399.99Ω	0.7%+2 digits	0.4°	series
40Ω	4.000Ω~39.999Ω	1.0%+5 digits	0.6°	series
4Ω	0.4000Ω~3.9999Ω	3.0%+10 digits	1.7°	series
0.4Ω	0.0000Ω~0.3999Ω	7%+20 digits	------	series

Specification：

Model	Hantek1832C		Hantek1833C
Test frequency	100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz		100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz
Accuracy	0.30%
Equivalent Circuit	series, parallel
Test level	0.6Vrms		0.6Vrms, 0.3Vrms
Measurement way	manual, auto
Display screen	2.8 inch TFT LCD
Measurement parameters	principle parameter: L/C/R/Z deputy parameter: X/D/Q/θ/ESR
Principle parameter	L/C/R/Z
Deputy parameter	X/D/Q/θ/ESR
Inductance Measurement range	(L) 0-2000H
Capacitance Measurement range	(C) 0-20mF
Resistance Measurement range	(R) 0-20MΩ
Measurement speed	high speed(4 times/s), intermediate speed(twice/s), low speed(once/s)
Reset function	open circuit calibration, short-circuit calibration
Test terminal configuration	3 terminal, 5 terminal
General feature	standard with 1.Type-C data cable; 2.power adapte; 3.short circuit card; 4.red and black rubber plug; 5.large capacity lithium battery
Capacitance C and dissipationD
100Hz/120Hz
Range	Display range	Accuracy Ce	Accuracy De	Recommended equivalent mode
20mF	4.000mF~20.000mF	8.00%+5 digits	0.08	series
4mF	400.0μF~3.9999mF	2.00%+3 digits	0.02	series
400μF	40.00μF~399.99μF	0.60%+2 digits	0.006	series
40μF	4.000μF~39.999μF	0.40%+2 digits	0.004	series
4μF	400.0nF~3.9999μF	0.40%+2 digits	0.004	----
400nF	40.00nF~399.99nF	0.4%+2 digits	0.004	parallel
40nF	4.000nF~39.999nF	0.5%+3 digits	0.005	parallel
4nF	0pF~3.999nF	1.5%+5 digits	------	parallel
1KHz
Range	Display range	Accuracy Ce	Accuracy De	Recommended equivalent mode
1000uF	400.0uF~999.9uF	3.00%+5 digits	0.03	series
400μF	40.00μF~399.99μF	1.50%+3 digits	0.015	series
40μF	4.000μF~39.999μF	0.60%+2 digits	0.006	series
4μF	400.0nF~3.9999μF	0.40%+2 digits	0.004	----
400nF	40.00nF~399.99nF	0.4%+2 digits	0.004	parallel
40nF	4.000nF~39.999nF	0.6%+3 digits	0.006	parallel
4nF	400.0pF~3.9999nF	0.6%+3 digits	0.006	parallel
400pF	0.0pF~399.9pF	3%+5 digits	------	parallel
10KHz
Range	Display range	Accuracy Ce	Accuracy De	Recommended equivalent mode
100μF	40.00μF~100.00μF	4.00%+5 digits	0.04	series
40μF	4.000μF~39.999μF	2.0%+3 digits	0.02	series
4μF	400.0nF~3.9999μF	0.60%+2 digits	0.006	series
400nF	40.00nF~399.99nF	0.4%+2 digits	0.004	series
40nF	4.000nF~39.999nF	0.4%+2 digits	0.004	------
4nF	400.0pF~3.9999nF	0.4%+2 digits	0.004	parallel
400pF	40.00pF~399.99pF	0.6%+3 digits	0.006	parallel
40pF	0.00pF~39.99pF	2.5%+5 digits	------	parallel
40KHz
Range	Display range	Accuracy Ce	Accuracy De	Recommended equivalent mode
100μF	40.00μF~100.00μF	6.00%+5 digits	0.06	series
40μF	4.000μF~39.999μF	4.0%+3 digits	0.04	series
4μF	400.0nF~3.9999μF	1.0%+2 digits	0.01	series
400nF	40.00nF~399.99nF	0.6%+2 digits	0.006	series
40nF	4.000nF~39.999nF	0.6%+2 digits	0.006	------
4nF	400.0pF~3.9999nF	0.6%+2 digits	0.006	parallel
400pF	40.00pF~399.99pF	1%+3 digits	0.01	parallel
40pF	0.000pF~39.999pF	3%+5 digits	------	parallel
100KHz
Range	Display range	Accuracy Ce	Accuracy De	Recommended equivalent mode
10μF	4.000μF~10.000μF	8.0%+20 digits	0.08	series
4μF	400.0nF~3.9999μF	5.0%+10 digits	0.05	series
400nF	40.00nF~399.99nF	1.5%+5 digits	0.015	series
40nF	4.000nF~39.999nF	1%+2 digits	0.01	series
4nF	400.0pF~3.999nF	1%+2 digits	0.01	------
400pF	40.00pF~399.99pF	1.5%+2 digits	0.015	parallel
40pF	4.000pF~39.999pF	2%+5 digits	0.02	parallel
4pF	0.000pF~3.999pF	5%+10 digits	------	parallel
Inductance L and quality factor
100Hz/120Hz
Range	Display range	Accuracy Le	Accuracy De*	Recommended equivalent mode
1000H	400.0H~999.9H	2.00%+3 digits	0.02	parallel
400H	40.000H~399.99H	0.60%+2 digits	0.006	parallel
40H	4.000H~39.999H	0.40%+2 digits	0.004	parallel
4H	400.0mH~3.9999H	0.40%+2 digits	0.004	----
400mH	40.00mH~399.99mH	0.4%+2 digits	0.004	series
40mH	4.000mH~39.999mH	0.6%+3 digits	0.006	series
4mH	0uH~3.999mH	3.0%+5 digits	------	series
1kHz
Range	Display range	Accuracy Le	Accuracy De*	Recommended equivalent mode
1H	400.0mH~999.9mH	1.50%+3 digits	0.015	parallel
400mH	40.00mH~399.99mH	0.4%+2 digits	0.004	parallel
40mH	4.000mH~39.999mH	0.4%+2 digits	0.004	------
4mH	400.0uH~3.9999mH	0.4%+2 digits	0.004	series
400uH	40.00uH~399.99uH	0.8%+3 digits	0.008	series
40uH	0.00uH~39.99uH	3.0%+5 digits	------	series
10kHz
Range	Display range	Accuracy Le	Accuracy De*	Recommended equivalent mode
100H	40.00H~100.00H	2.0%+3 digits	0.02	parallel
40H	4.000H~39.999H	0.60%+2 digits	0.006	parallel
4H	400.0mH~3.9999H	0.40%+2 digits	0.004	parallel
400mH	40.00mH~399.99mH	0.4%+2 digits	0.004	------
40mH	4.000mH~39.999mH	0.4%+2 digits	0.004	series
4mH	400.0uH~3.9999mH	1%+3 digits	0.01	series
400uH	0.0uH~399.9uH	3.0%+5 digits	------	series
40kHz
Range	Display range	Accuracy Le	Accuracy De*	Recommended equivalent mode
1H	400.0mH~999.9mH	2.0%+4 digits	0.02	parallel
400mH	40.00mH~399.99mH	0.8%+2 digits	0.008	parallel
40mH	4.000mH~39.999mH	0.8%+2 digits	0.008	------
4mH	400.0uH~3.9999mH	0.8%+2 digits	0.008	series
400uH	40.00uH~399.99uH	1.5%+3 digits	0.015	series
40uH	0.000uH~39.999uH	4.0%+5 digits	------	series
100kHz
Range	Display range	Accuracy Le	Accuracy De	Recommended equivalent mode
100mH	40.00mH~399.99mH	2.5%+2 digits	0.025	parallel
40mH	4.000mH~39.999mH	1.5%+2 digits	0.015	parallel
4mH	400.0uH~3.9999mH	1.0%+2 digits	0.01	------
400uH	40.00uH~399.99uH	1.0%+2 digits	0.01	series
40uH	4.000uH~39.999uH	1.5%+5 digits	0.015	series
4uH	0.000uH~3.999uH	4%+10 digits	------	series
Impedance Z and phase angle
100Hz, 120Hz, 1kHz, 10kHz
Range	Display range	Accuracy Ze	Accuracy	Recommended equivalent mode
20MΩ	4.000MΩ~20.000MΩ	3.0%+10 digits	3.4°	parallel
4MΩ	400.0kΩ~3.9999MΩ	1.2%+3 digits	0.7°	parallel
400kΩ	40.00kΩ~399.99kΩ	0.3%+3 digits	0.2°	parallel
40kΩ	4.000kΩ~39.999kΩ	0.25%+2 digits	0.1°	------
4kΩ	400.0Ω~3.9999kΩ	0.25%+2 digits	0.1°	series
400Ω	40.00Ω~399.99Ω	0.25%+2 digits	0.1°	series
40Ω	4.000Ω~39.999Ω	0.5%+3 digits	0.3°	series
4Ω	0.4000Ω~3.9999Ω	2.0%+3 digits	1.1°	series
0.4Ω	0.0000Ω~0.3999Ω	4.0%+3 digits	------	series
40kHz
Range	Display range	Accuracy Ze	Accuracy	Recommended equivalent mode
20MΩ	4.000MΩ~20.000MΩ	7.0%+41 digits	4.0°	parallel
4MΩ	400.0kΩ~3.9999MΩ	2.5%+3 digits	1.4°	parallel
400kΩ	40.00kΩ~399.99kΩ	1.0%+4 digits	0.6°	parallel
40kΩ	4.000kΩ~39.999kΩ	1.0%+4 digits	0.6°	------
4kΩ	400.0Ω~3.9999kΩ	0.5%+3 digits	0.3°	series
400Ω	40.00Ω~399.99Ω	0.5%+3 digits	0.3°	series
40Ω	4.000Ω~39.999Ω	0.7%+4 digits	0.4°	series
4Ω	0.4000Ω~3.9999Ω	2.0%+6 digits	1.1°	series
0.4Ω	0.0000Ω~0.3999Ω	5.0%+10 digits	------	series
100kHz
Range	Display range	Accuracy Ze	Accuracy	Recommended equivalent mode
20MΩ	4.000MΩ~20.000MΩ	9.0%+20 digits	5.2°	parallel
4MΩ	400.0kΩ~3.9999MΩ	4.0%+10 digits	2.3°	parallel
400kΩ	40.00kΩ~399.99kΩ	1.5%+4 digits	0.9°	parallel
40kΩ	4.000kΩ~39.999kΩ	1.0%+2 digits	0.6°	parallel
4kΩ	400.0Ω~3.9999kΩ	0.7%+2 digits	0.4°	------
400Ω	40.00Ω~399.99Ω	0.7%+2 digits	0.4°	series
40Ω	4.000Ω~39.999Ω	1.0%+5 digits	0.6°	series
4Ω	0.4000Ω~3.9999Ω	3.0%+10 digits	1.7°	series
0.4Ω	0.0000Ω~0.3999Ω	7%+20 digits	------	series

【Tip: up to 4 products can be compared】

Select	Model	Bandwidth	Channels	Sampling rate	Other
	Hantek1832C/Hantek1833C

Hantek183X Manual

2023-09-08

Update Firmware Tool

2022-06-22

Hantek183X Firmware

2021-07-20

Hantek183X Software

2020-11-25
