Features

• Cost effective, PC USB Function/Arbitrary Waveform Generator.
• It can be used to disengage computer. Simulation of sensors and real word signals.
• It can be used as the other products signal generator module, no need computer. It will produce the needed arbitrary  waveform signal when power on.
• 200 MSa/s of sample rate, 12 bits of vertical resolution.
• 25Mz Arbitrary waveform output (sine wave up to 75 Mz).
• One computer can be linked with several DDS-3X25 to expand multi-channels.
• 50 MHz frequency counter.
• 12bits pattern generator.
• USB interface, plug and play, no need external power supply, compact and portable.
• Operating system: Windows NT, Windows 2000, Windows XP, Windows Vista, Windows 7.
• Second Design support: Labview\VB\VC\Delphi\C++Build. Provide second design examples.

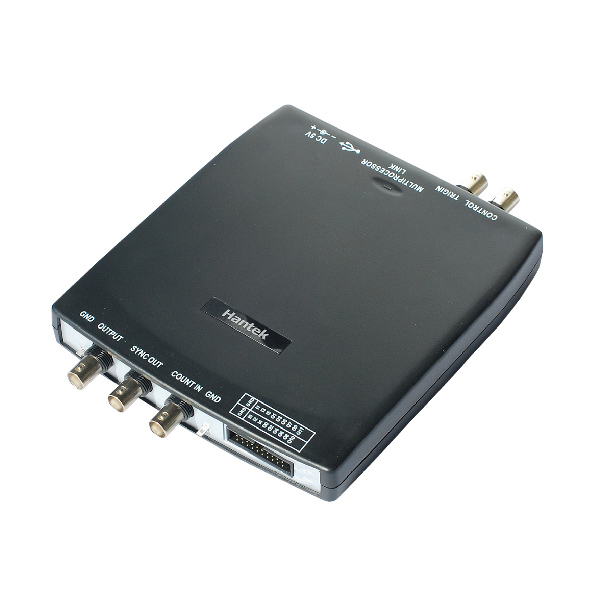

Function Pictures
