HT3000PF Series - Hantek Electronic & Your testing solution provider

Utilizes SMT technology.

LCD display to show regulated voltage and current.

Green/Amber LCD back-light selectable.

Auto interchangeable of regulated voltage and current.

Multi-turn variable device to provide high precision voltage setting.

Step-by-step current limit setting.

Auto-tracking on PARALLEL and SERIAL working condition.

Extended output terminal connection.

Continuously working under full loaded condition

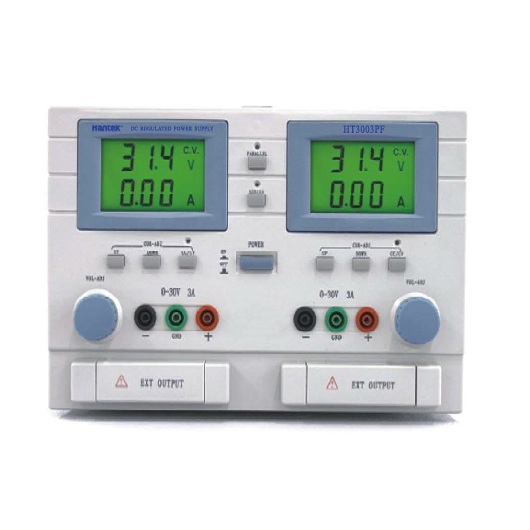

Model	HT3003PF	HT3005PF
Output Voltage	0-30V	0-30V
Output Current	0-3A	0-5A
Input Voltage	110/220V±10%, 50Hz~60Hz
Voltage effect	CV≤1x10-4+3mV, CC≤2x10-4+6mA
Load effect	CV≤2x10-4+3mV, CC≤2x10-4+6mA
Ripple & Noise	CV≤0.5mVrms
Protection	Current Limiting
Voltage Accuracy	Reading±1% ±1 digit
Current Accuracy	Reading±2% ±2 digit
Environment	Ambient Temperature: 0-40℃; Humidity: <90%
