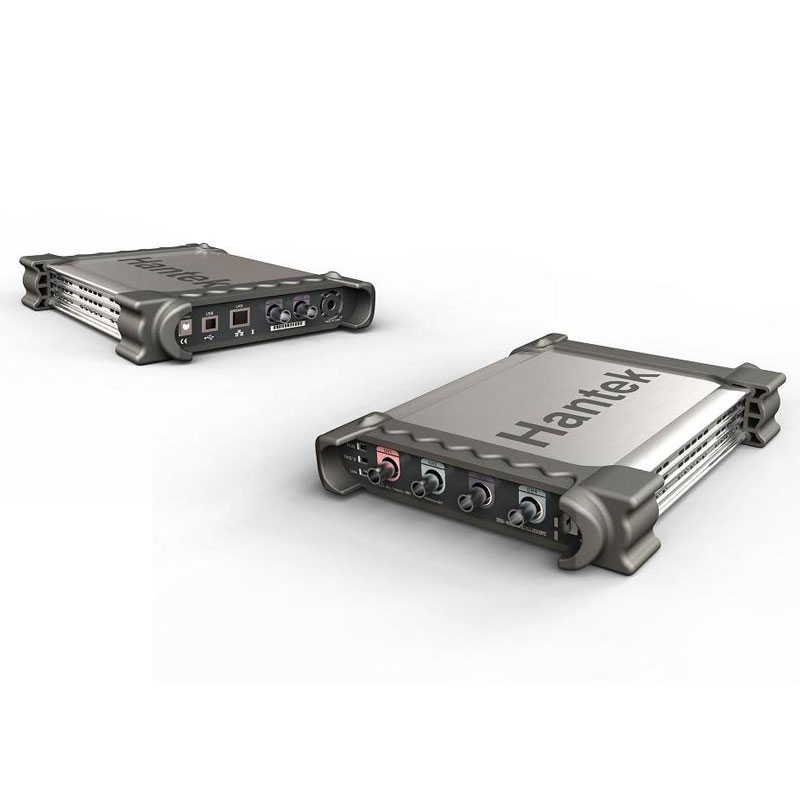

DSO3000 Series (200MSa/s)

Features

8--36V wide range of input voltage, suitable for vehicle power test.
USB 2.0 interface, LAN optional.
More than 20 kinds of automatic measurement function, PASS/FAIL Check function, is suitable for engineering application.
Excellent industrial design,similar interface with bench oscilloscope. Easy to use.
Software support: Windows NT, Windows 2000, Windows XO, VISTA, Windows 7.
Supply DEMO code(VC, VB, LABIEW) and technical support.

Model	DSO3064A	DSO3064
Analog Channels	4	4
Arb. Waveform Generator	Yes	No
Logic Analyzer	No	No

Function Picture

For the models with logic analyzer function

Model	DSO3064A	DSO3064
VERTICAL
Analog Channels	4	4
Bandwidth	60MHz	60MHz
Rise Time	5.8ns	5.8ns
Input Impedance	Resistance: 1MΩ; Capacitance: 25 pF
Input Sensitivity	10mV/div to 5V/div
Input Coupling	AC/DC/GND
Vertical Resolution	8 bits
Memory Depth	10K-16M/CH
Maximum Input	400V (DC+AC Peak)
HORIZONTAL
Real-Time Sampling Rate	200MS/s	200MS/s
Time Base Range	5ns/div to 1000s/div(1-2-5 sequences)
Time Base Precision	±50ppm
TRIGGER
Source	CH1, CH2,CH3,CH4,EXT
Mode	Edge,Pulse,Video,Alternative
Auto Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement	Cross, Trace, Horizontal, Vertical
Waveform Signal Process	+,- , x,÷, FFT, Invert
Voltage Range	10mV to 5V/div @ x 1 probe; 100mV to 50V/div @ x 10 probe;
	1V to 500V/div @ x 100 probe; 10V to 5000V/div @ x 1000 probe;
	100V to 50000V/div @ x 10000 probe; 200mV to 100V/div @ 20:1
Current Range	CC65(20A),CC65(60A),CC650,CC1100
FFT	Rectangular, Hanning, Hamming, Blackman Window
Math	Adition, subtraction, multiplication, division
Logic Analyzer
Arbitrary Waveform Generator Mode
Waveform Frequency	DC~25MHz	--
DAC	2K~200MHz adjustable	--
Frequency Resolution	0.10%	--
Channel	1CH waveform output	--
Waveform Depth	4KSa	--
Vertical Resolution	12 bit	--
Frequency Stability	<30ppm	--
Wave Amplitude	±3.5V Max.	--
Output Impedance	50 Ω	--
Output Current	50mA Ipeak=50mA	--
System BW	25M	--
Harmonic Distortion	-50dBc(1KHz), -40dBc(10KHz)	--

INTERFACE	USB 2.0 (Lan Optional)
POWER SOURCE	8--36V Wide range of input voltage, suitable
Volume	255 x 190 x 45 (mm)
Weight	1Kg

【Tip: up to 4 products can be compared】

Model	Bandwidth	Channels	Sampling rate	Other
Hantek6004EU Series	70-250MHz	4CH	1GSa/s	Waveform capture rate is 400,000FPS 500uV-10V/DIV input sensitivity 128Mpts memory depth 80,000 section fragmentation
iDSO Series	70MHz	2CH	250MSa/s	iPad/Windows Oscilloscope, Multi-touch Operation. WIFI Communicati) Build-in Lithium Battery.Floating Measurementon (USB Communication small size convenient for travel
Hantek6004BD Series	70MHz~250MHz	4CH+1CH Arb. Generator	1GSa/s	USB2.0 Interface, plug and play device Support Win7/Win8/Win10 High cost performance Support USBXI, same interface, easy to operate
Hantek6004BC Series	70MHz~250MHz	4CH	1GSa/s	USB2.0 Interface, plug and play device Support Win7/Win8/Win10 High cost performance Support USBXI, same interface, easy to operate
PSO2020 USB Pen Storage Oscilloscope	20MHz	1 CH	96MSa/s	USB Power Supply 20 Types of Auto Measurement Pass/Fail Function Windows NT，Windows2000/XP WIN7/8 Possible to Connect to Laptop Directly
Hantek1008A	100K	8CH	2.4MSa/s	70 Kinds of Vehicle Diagnosis; USB 2.0 interface plug and play; 12Bits Vertical Resolution 8 CH Programmable Generator
DSO3000(A) Series (1GSa/s)	100~250MHz	4 CH	1GSa/s	128M Memory Depth Max. measurable signal up to 250MHz Similar interface with Bench DSO 8Bit vertical resolution Suppurt Win7/Win8
DSO3000 Series (200MSa/s)	60MHz	4/2CH+16LA	200MSa/s	16M Memory Depth DSO/LA/Spectrum Analysis/ AWG/ Frequency Counter; USB 2.0 interface plug and play; Similar interface with Bench DSO; Suppurt Win7/Win8/XP/VISTA.
Hantek6002BE Series	20MHz~200MHz	2CH	48MSa/s-250MSa/s	USB2.0 interface, no external power required, Support win7, win8 8Bit Vertical resolution, Standard USBXI (TM) interface Similar interface with Bench DSO easy to operate
Hantek6022BL	20MHz	2CH(Digital) 16CH(Logic)	48MSa/s	USB2.0 interface, no external power required, 10MHz Logic Analyzer Support Win7, Win8, 8Bit vertical resolution. Support USBXI, Similar interface with Bench DSO
DSO2000 Series	40-200MHz	2CH	100/150MS/s 200/250MS/s	USB2.0 interface, no external power required,Support Win7, Win8 8Bit vertical resolution Similar interface with Bench DSO 23 measurement functions PASS/FAIL Check with FFT.
DSO-220USB/DSO-2100USB	20MHz-100MHz	2	20MSa/s	The discontinued, don't support compare

Standard accessories

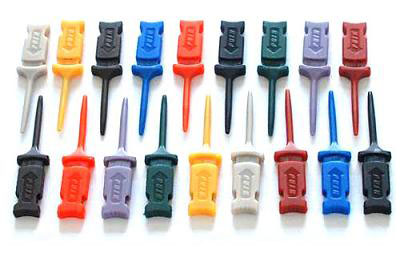

Extra standard accessories for models with logic analyzer

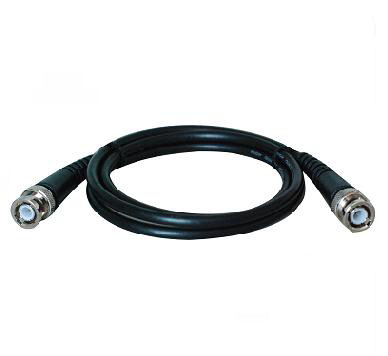

Extra standard accessory for models with arb. waveform generator

Optional interface for oscilloscope section

LAN (HT312)
