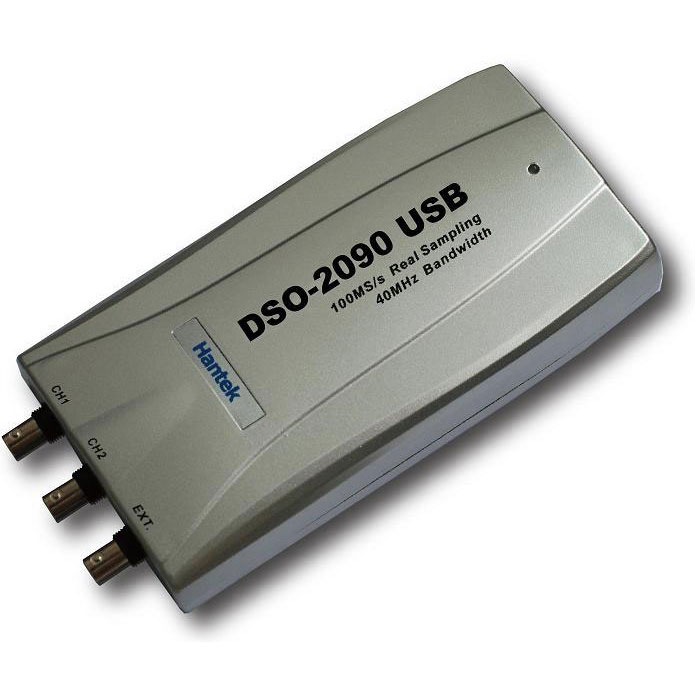

DSO2000 Series
| Model | DSO2090 | DSO2150 discontinued（simlimar model） | DSO2250 discontinued（simlimar model） | DSO5200 discontinued（simlimar model） | |
| Channel | 2 | 2 | 2 | 2 | 2 |
| Bandwidth | 40MHz | 60MHz | 100MHz | 200MHz | 200MHz |
| Max. Sample rate | 100MS/s | 150MS/s | 250MS/s | 200MS/s | 250MS/s |
| Rising Time | 8.8ns | 5.8ns | 3.5ns | 1.7ns | 1.7ns |
| Impedance | 1MΩ 25pF | ||||
| Coupling | AC/DC/GND | ||||
| Vertical resolution | 8Bit | 9 Bit | |||
| Gain range | 10mV-5V, 9 Steps | ||||
| DC accuracy | ±3% | ||||
| Timebase range | 4ns-1h, 38 Steps | ||||
| Vertical adjustable | Yes | ||||
| Input protection | Diode clamping | ||||
| X-Y | Yes | ||||
| EXT. input | Yes | ||||
| Trigger Mode | Auto, Normal and Single | ||||
| Trigger Slope | +/- | ||||
| Trigger level adjustable | Yes | ||||
| Trigger Type | Rising edge, falling edge | ||||
| Trigger Source | CH1, CH2, EXT | ||||
| Pre/Post trigger | 0-100% | ||||
| Buffer size | 64K | 64K | 1M | 64K | 1M |
| Sampling selection | Yes | ||||
| Waveform Display | port/line, waveform average, persistence, intensity | ||||
| Network | Open/Close | ||||
| Vertical mode | CH1, CH2, Dual, ADD | ||||
| Cursor measurement | Yes | ||||
| Math | FFT, addition, subtraction, multiplication, division. | ||||
| Cursor | Frequency, Voltage | ||||
| Accessories | S/W CD, probes, manual, USB cord | ||||
| Select | Model | Bandwidth | Channels | Sampling rate | Other |
|---|---|---|---|---|---|
Hantek6004EU Series
|
70-250MHz | 4CH | 1GSa/s | Waveform capture rate is 400,000FPS 500uV-10V/DIV input sensitivity 128Mpts memory depth 80,000 section fragmentation |
|
iDSO Series
|
70MHz | 2CH | 250MSa/s | iPad/Windows Oscilloscope, Multi-touch Operation. WIFI Communicati) Build-in Lithium Battery.Floating Measurementon (USB Communication small size convenient for travel |
|
Hantek6004BD Series
|
70MHz~250MHz | 4CH+1CH Arb. Generator | 1GSa/s | USB2.0 Interface, plug and play device Support Win7/Win8/Win10 High cost performance Support USBXI, same interface, easy to operate |
|
Hantek6004BC Series
|
70MHz~250MHz | 4CH | 1GSa/s | USB2.0 Interface, plug and play device Support Win7/Win8/Win10 High cost performance Support USBXI, same interface, easy to operate |
|
PSO2020 USB Pen Storage Oscilloscope
|
20MHz | 1 CH | 96MSa/s | USB Power Supply 20 Types of Auto Measurement Pass/Fail Function Windows NT，Windows2000/XP WIN7/8 Possible to Connect to Laptop Directly |
|
Hantek1008A
|
100K | 8CH | 2.4MSa/s | 70 Kinds of Vehicle Diagnosis; USB 2.0 interface plug and play; 12Bits Vertical Resolution 8 CH Programmable Generator |
|
DSO3000(A) Series (1GSa/s)
|
100~250MHz | 4 CH | 1GSa/s | 128M Memory Depth Max. measurable signal up to 250MHz Similar interface with Bench DSO 8Bit vertical resolution Suppurt Win7/Win8 |
|
DSO3000 Series (200MSa/s)
|
60MHz | 4/2CH+16LA | 200MSa/s | 16M Memory Depth DSO/LA/Spectrum Analysis/ AWG/ Frequency Counter; USB 2.0 interface plug and play; Similar interface with Bench DSO; Suppurt Win7/Win8/XP/VISTA. |
|
Hantek6002BE Series
|
20MHz~200MHz | 2CH | 48MSa/s-250MSa/s | USB2.0 interface, no external power required, Support win7, win8 8Bit Vertical resolution, Standard USBXI (TM) interface Similar interface with Bench DSO easy to operate |
|
Hantek6022BL
|
20MHz | 2CH(Digital) 16CH(Logic) |
48MSa/s | USB2.0 interface, no external power required, 10MHz Logic Analyzer Support Win7, Win8, 8Bit vertical resolution. Support USBXI, Similar interface with Bench DSO |
|
|
DSO2000 Series
|
40-200MHz | 2CH | 100/150MS/s 200/250MS/s |
USB2.0 interface, no external power required,Support Win7, Win8 8Bit vertical resolution Similar interface with Bench DSO 23 measurement functions PASS/FAIL Check with FFT. |
|
DSO-220USB/DSO-2100USB
|
20MHz-100MHz | 2 | 20MSa/s | The discontinued, don't support compare |
 |
 |
 |
 |
 |
