6 1/2-bit reading high-resolution internal resistance testing tester is a battery internal resistance tester with high accuracy and rapid measurement characteristics, and the measurement voltage range reaches 2100V.
0.1 μΩ resistance resolution, 10 μV voltage resolution, has high precision, high speed, and suitable for various battery types.
Standard RS232/485, LAN, EXT I/O, USB Host, USB Device, ANALOGOUTPUT interface, optional GPIB interface, suitable for more testing scenarios.
Using AC 4 -terminal method, the impedance can not be affected by the impedance of the test line during the impedance measurement.
It has a comparison function with resistance and voltage respectively, and the battery intimidation and voltage are displayed at the same time.
Short -circuit zero adjustment function, remove the bias voltage of the instrument or the error caused by the measurement environment.
Support U disk screenshots to save functions, and you can upgrade the instrument program through the U disk.
Internal impedance measurement range:3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3.9kΩ.
The full range of voltage measurement covers:1300V/1700V/2100V.
Draw a normal distribution map and visually observe the normal distribution of measurement results.
The measurement results are easily saved into the U disk to facilitate subsequent data analysis and processing.

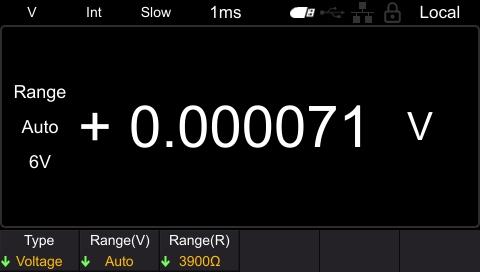

High precision and wide range

6 1/2, the voltage measurement range reaches 2100V, the resistance measurement range is 0 ~ 3.9kΩ, and the battery internal resistance testing internal resistance testing internal resistance test instrument with high accuracy and rapid measurement characteristics is covered. Field meets your needs.

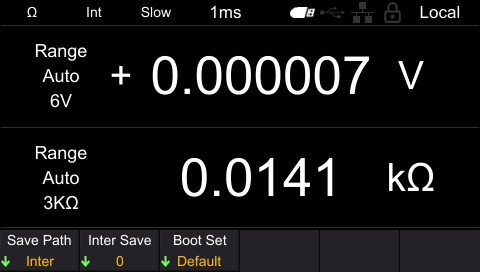

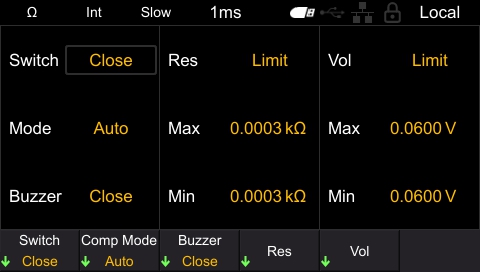

Comparator function

Resistance and voltage are independent, and the function of displaying and output the measurement results will help you better understand the working status of your circuit or equipment.

Save/Load Function

The startup settings can be saved to the internal or U disk. There is no need to perform tedious application settings every time you use. Press the corresponding power -on settings button to easily load the previously saved application settings.

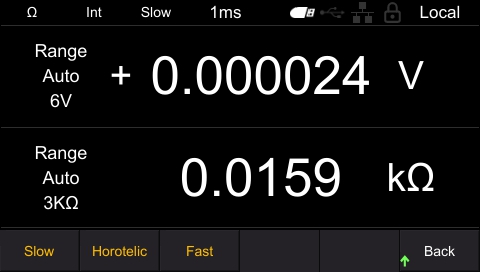

Three-speed sampling rate

The sampling rate can be changed in three stages (Fast/Horotelic/Slow), and the appropriate sampling rate can be selected according to different testing needs. The fastest high-speed measurement can be about 40 ms. The lower the sampling rate, the higher the testing accuracy.

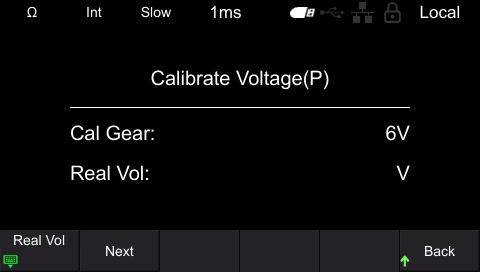

Correction function

The calibration is divided into voltage calibration and resistance calibration, which is used to compensate the bias voltage or gain drift of the internal circuit of the instrument to improve the test accuracy.

Statistical function

Calculating a variety of statistical indicators, including but not limited to Average, Max, Min, Parent Standard Deviation, etc., makes it easy to plot the normal distribution and helps you visualize the normal distribution of your measurements.

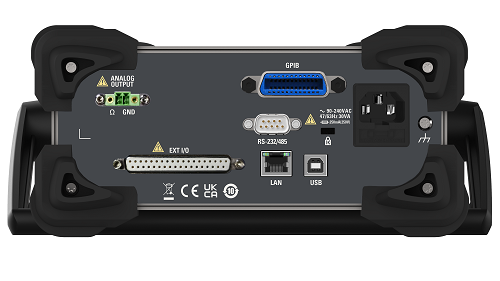

Rich configuration interfaces

Standard RS232/485, LAN, EXT I/O, USB Host, USB Device, ANALOGOUTPUT interface, optional GPIB interface.

Model	Resistance Resolution	Resistance Range	Resistance Accuracy	Voltage Resolution	Voltage Range	Voltage Accuracy	Interface
HBT4564A	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	10μV	0~1300V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT
HBT4564H	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	10μV	0~1300V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTPUT GPIB
HBT4565A	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	10μV	0~1700V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT
HBT4565H	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	10μV	0~1700V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTPUT GPIB
HBT4566A	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	10μV	0~2100V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT
HBT4566H	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	10μV	0~2100V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTPUT GPIB

Model

HBT4561A/H

HBT4562A/H

HBT4563A/H

HBT4564A/H

HBT4565A/H

HBT4566A/H

Voltage

Measurement

Range

160V

260V

410V

1300V

1700V

2100V

Max. Display

176V

286V

451V

1430V

1870V

2310V

Resolution

1 μV

10 μV

Accuracy

±0.01% rdg ±3 dgt

Resistance Measurement

Range

Max. Display

Resolution

Measurement Current

Accuracy

3 mΩ

30 mΩ or more

3 mΩ

3.6 mΩ

0.1 μΩ

100 mA

±0.5% rdg ±10 dgt

±0.5% rdg ±5 dgt

30 mΩ

36 mΩ

1 μΩ

100 mA

300 mΩ

360 mΩ

10 μΩ

10 mA

3 Ω

3.6 Ω

100 μΩ

1 mA

30 Ω

36Ω

1 mΩ

100 μA

300 Ω

360 Ω

10 mΩ

10 μA

3900 Ω

3910 Ω

100 mΩ

10 μA

Measurement Method

AC four-terminal method

Measurement Frequency

1 kHz

Response Time

5 ms approx.

Open Terminal Voltage

12 V peak

15 V peak

Sampling Period

(Frequency: 50 Hz/60 Hz)

Meas.

Speed

Fast

Medium

Slow

ΩV

60 ms

300 ms

600 ms

Ω or V

40 ms

200 ms

400 ms

Allowable Total Line Res.(error detection)

Range

3 mΩ

30 mΩ

300 mΩ

3 Ω

Sense Line

3 Ω

20 Ω

Source Line

3 Ω

20 Ω

200 Ω

Function

Zero Adjustment

Yes

Meas. Current Pulse Output

Pulse, Continuous

Statistical Calculations

Mean, Maximum, Minimum, Standard Deviation, Sample Standard Deviation, Process Capability Index (Dispersion), Process Capability Index (Deviation)

Delay Time

1 ms to 9999 ms

Average

1, 2, 4, 8 times

Save/Load

Up to 1000

Trigger

Internal, External, Manual

Interface

Standard

RS232/485, USB, LAN, I/O, Analog Output

Optional

GPIB (HBT4000H series models only)

Display

4.3 inch LCD

AC Input

110 V ±10 % or 220 V ± 10 %, 47 to 63 Hz

Dimension (WxHxD)

Low voltage: 208.5mm*84.5mm*264mm

High voltage: 208.5mm*84.5mm*344mm

Model

HBT4561A/H

HBT4562A/H

HBT4563A/H

HBT4564A/H

HBT4565A/H

HBT4566A/H

Voltage

Measurement

Range

160V

260V

410V

1300V

1700V

2100V

Max. Display

176V

286V

451V

1430V

1870V

2310V

Resolution

1 μV

10 μV

Accuracy

±0.01% rdg ±3 dgt

Resistance Measurement

Range

Max. Display

Resolution

Measurement Current

Accuracy

3 mΩ

30 mΩ or more

3 mΩ

3.6 mΩ

0.1 μΩ

100 mA

±0.5% rdg ±10 dgt

±0.5% rdg ±5 dgt

30 mΩ

36 mΩ

1 μΩ

100 mA

300 mΩ

360 mΩ

10 μΩ

10 mA

3 Ω

3.6 Ω

100 μΩ

1 mA

30 Ω

36Ω

1 mΩ

100 μA

300 Ω

360 Ω

10 mΩ

10 μA

3900 Ω

3910 Ω

100 mΩ

10 μA

Measurement Method

AC four-terminal method

Measurement Frequency

1 kHz

Response Time

5 ms approx.

Open Terminal Voltage

12 V peak

15 V peak

Sampling Period

(Frequency: 50 Hz/60 Hz)

Meas.

Speed

Fast

Medium

Slow

ΩV

60 ms

300 ms

600 ms

Ω or V

40 ms

200 ms

400 ms

Allowable Total Line Res.(error detection)

Range

3 mΩ

30 mΩ

300 mΩ

3 Ω

Sense Line

3 Ω

20 Ω

Source Line

3 Ω

20 Ω

200 Ω

Function

Zero Adjustment

Yes

Meas. Current Pulse Output

Pulse, Continuous

Statistical Calculations

Mean, Maximum, Minimum, Standard Deviation, Sample Standard Deviation, Process Capability Index (Dispersion), Process Capability Index (Deviation)

Delay Time

1 ms to 9999 ms

Average

1, 2, 4, 8 times

Save/Load

Up to 1000

Trigger

Internal, External, Manual

Interface

Standard

RS232/485, USB, LAN, I/O, Analog Output

Optional

GPIB (HBT4000H series models only)

Display

4.3 inch LCD

AC Input

110 V ±10 % or 220 V ± 10 %, 47 to 63 Hz

Dimension (WxHxD)

Low voltage: 208.5mm*84.5mm*264mm

High voltage: 208.5mm*84.5mm*344mm

Standard Accessories

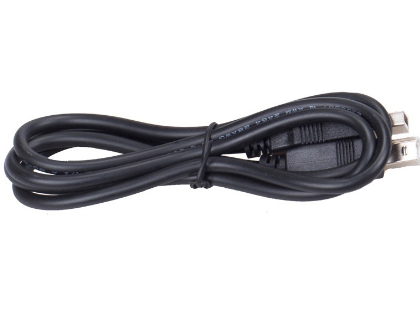

Power cable

The instrument comes standard with a national standard power cord where the user is located, which can also be purchased separately.

Square port USB

Square port USB cable is used for instruments and PC communication. Before use, you need to install the KEYSIGHT IO software on the PC side.

Packing list

Including: calibration certificate, packing form, warranty card and qualification certificate.

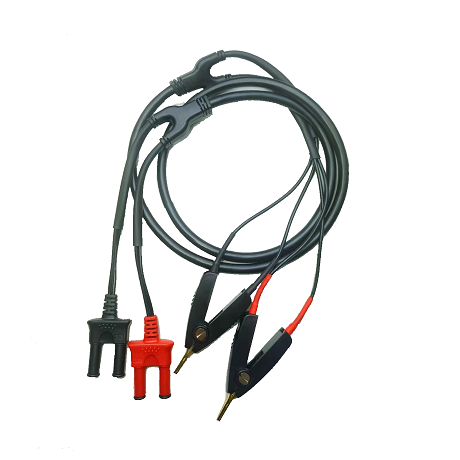

PIN TYPE LEAD HT2100

Tools used to measure internal resistance and voltage of battery.

CLIP TYPE LEAD HT2107

Tools used to measure internal resistance and voltage of battery.
