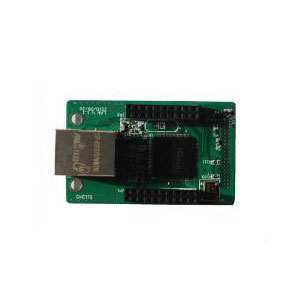

The LAN Interface PCB uses a High Impedance Transceiver (HIT) for signal transceiving in order to utilize a bus topology on the LAN.

This board is factory installed on oscilloscopes as an optional interface and should require no futher connections to be made to it.
