Model
|

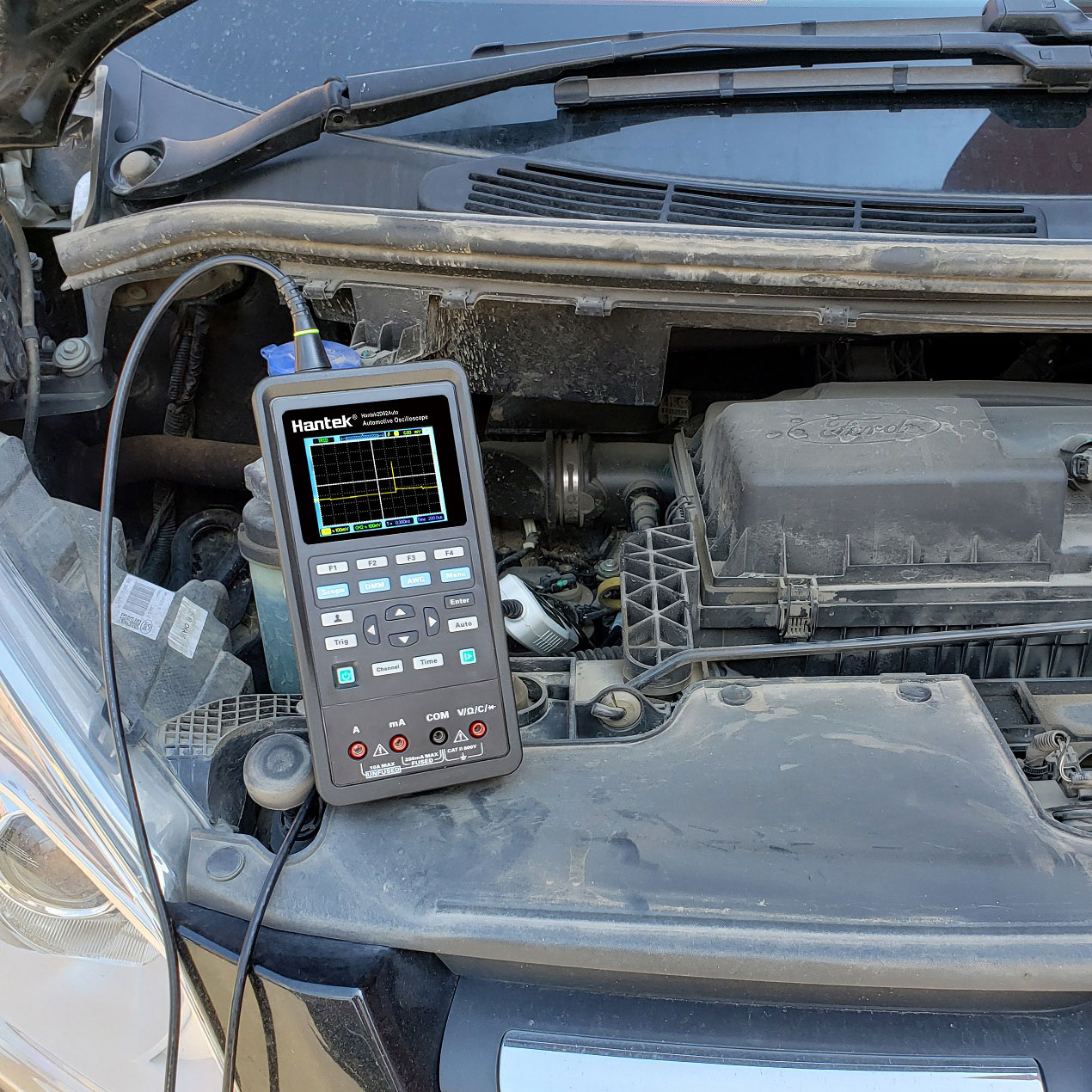

Hantek2D82AUTO
|
|
Vehicle Testing Mode
|
|
Vehicle Diagnosis
|

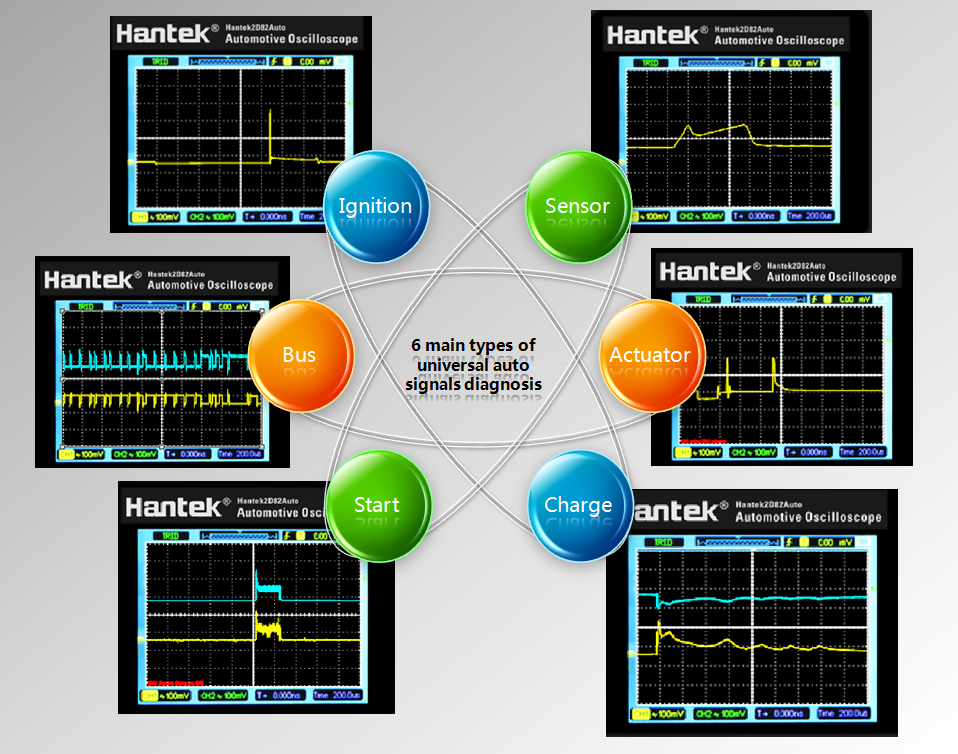

Vehicle Diagnostic Function
|
Ignition
|
Primary Ignition (Voltage)
|
|
Primary Ignition（current）
|
|
Primary Ignition（Voltage& Current）
|
|
Primary Ignition (Crankshaft Senser)
|
|
Primary Ignition&SecondaryIgnition
|
|
Secondary
|
Secondary Ignition Distributor Type (Plug Lead)
|
|
Secondary Ignition Distributor Type (King Lead)
|
|
Secondary DIS (Positive-fired)
|
|
Secondary DIS or CPC (Negative-fired)）
|
|
Secondary Coil Output Diagnosis
|
|
Secondary Ignition&Primary Ignition
|
|
Sensors
|
Air Flow Meter
|
Air Flow Meter (Hot Wire)
|
|
Air Flow Meter (Air Vane)
|
|
Air FlowSensor (BOSCH Diesel)
|
|
Air Intake PressureSensor (BOSCH Diesel)
|
|
Camshaft
|
Camshaft (Inductive)
|
|
Camshaft (AC Excited)
|
|
Camshaft (Hall Effect)
|
|
Camshaft (BOSCH Common Rail Diesel)
|
|
Crankshaft
|
Crankshaft Inductive Running
|
|
Crankshaft Inductive Cranking
|
|
Crankshaft Hall Effect
|
|
Crankshaft Sensor &Primary Ignition
|
|
Distributor
|
Distributor Pick-up (Hall Effect)
|
|
Distributor Inductive Pick-up Cranking
|
|
Distributor Inductive Pick-up Running
|
|
Lambda Sensors
|
Lambda Sensor Titania
|
|
Lambda Sensor Zirconia
|
|
Lambda Sensor Zirconia Pre & Post cat
|
|
Throttle Position
|
Throttle Position Potentiometer
|
|
Throttle Position Switch
|
|
Throttle Pedal Switch (Bosch Diesel)
|
|
ABS Digital Speed Sensor
|
|
ABS Analog Speed Sensor
|
|
Coolant Temperature (5V)
|
|
Coolant Temperature (GM/Vauxhall Simtec
|
|
Crash Sensor
|
|
MAP Analog
|
|
MAP Digital
|
|
Hall Effect Road Speed Sensor
|
|
Accelerator Pedal (Bosch Diesel)
|
|
Bus Diagnosis
|
CAN Bus
|
CAN Bus Data View
|
|
CAN Bus Signal Integrity
|
|
CAN Bus LH Long Capture
|
|
LIN Bus
|
LIN Bus
|
|
Engine
|
Petrol
|
Single-point Injector (Voltage)
|
|
Single-point Injector (Current)
|
|
Multi-point Injector (Voltage)
|
|
Multi-point Injector (Current)
|
|
Injector Voltage & Current
|
|
Injector Current & Primary Ignition
|
|
Diesel
|
Common Rail Diesel (Current)
|
|
Injector Bosch CDi 3 (Current)
|
|
Injector Bosch Diesel (Idling)
|
|
Injector Bosch Diesel (Accelerating)
|
|
|
Diesel Glow Plugs
|
|
Electronic Fuel Pump
|
|
Carbon Canister Solenoid Valve
|
|
ERG Recirculation Solenoid Valve
|
|
Stepper Motor Example 1
|
|
Stepper Motor Example 2
|
|
Idle Speed Control Valve (Rotary)
|
|
Idle Speed Control Valve (Electromagmetic)
|
|
Throttle Servomotor (Idling)
|
|
Throttle Servomotor (Accelerating)
|
|
Bosch CDi3 Quantity Control Valve
|
|
Bosch CDi3 Pressure Regulator Valve
|
|
Variable-Speed Cooling Fan On
|
|
Variable-Speed Cooling Fan Off
|
|
Variable Camshaft Valve Timing
|
|
Startup & Charge
|
Charging Circuits
|
Charging Circuits Current/Voltage
|
|
Charging Circuits Current/Voltage Starting 24V
|
|
Charging Circuits Current/Voltage Idling 24V
|
|
Charging Circuits Alternator AC Ripple/Diode Diagnosis
|
|
|
Relative Compression Petrol
|
|
Relative Compression Diesel
|
|
Starting Voltage Drop
|
|

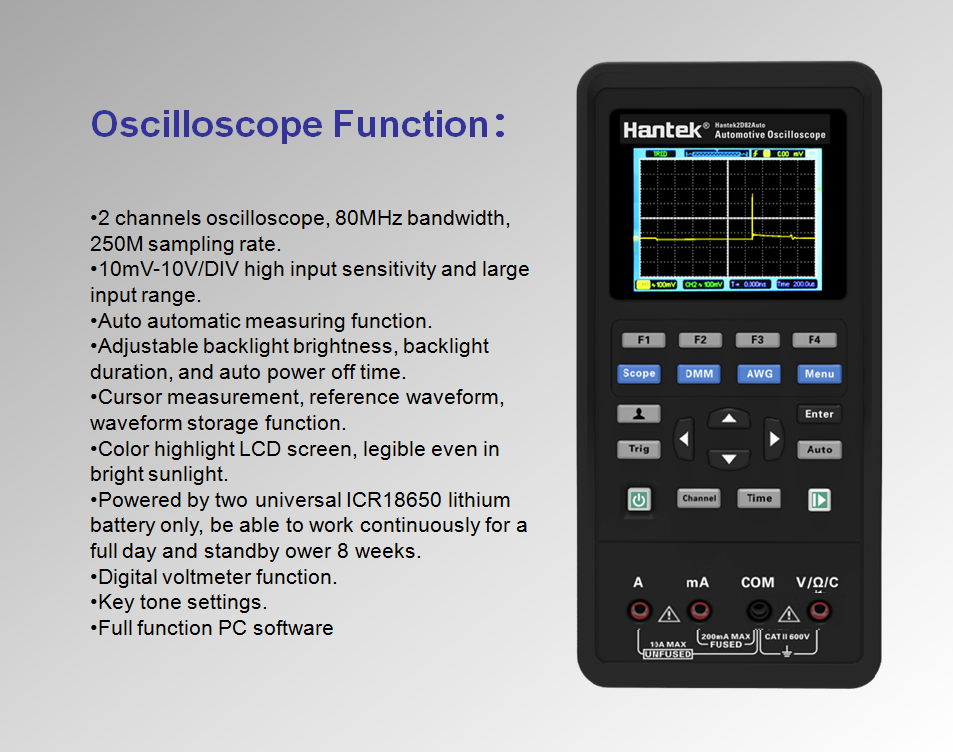

Oscilloscope Mode
|
|
Bandwidth
|
80MHz
|
|
Channel
|
2CH+DMM+AWG
|
|
Horizontal
|
|
Sample Rate Range
|
250MSa/s(Single-channel), 125MSa/s(Dual-channel)
|
|
Waveform Interpolation
|
(sin x)/x
|
|
Record Length
|
3K samples per dual-channel
|
|
SEC/DIV Range
|
5ns/div~500s/div 1, 2, 5 sequence
|
|
Vertical
|
|
A/D Converter
|
8-bit resolution,each channel sampled simultaneously
|
|
VOLTS/DIV Range
|
10mV/div~10V/divat input BNC
|
|
Bandwidth Limit, typical
|
20MHz
|
|
Low Frequency Response (-3db)
|
≤10Hz at BNC
|
|
Rise Time at BNC, typical
|
≤5ns
|
|
DC Gain Accuracy
|
±3% for Normal or Average acquisition mode, 10V/div to 10mV/div
|
|
Note: Bandwidth reduced to 6MHz when using a 1X probe.
|
|
Acquisition
|
|
Acquisition Modes
|
Normal
|
|
Trigger
|
|
Type
|
Edge
|
|
Mode
|
Auto, Normal, single
|
|
Level
|
±4 divisions from center of screen
|
|
Trigger Level Accuracy
|
0.2div × volts/div within ±4 divisions from center of screen
|
|
Slope
|
Rising, Falling, Rising & Falling
|
|
Source
|
CH1/CH2
|
|
Input
|
|
Coupling
|
DC, AC or GND
|
|
Input Impedance,
|
25pF±3 pF, 1MΩ±2%
|
|
DC coupled
|
|
Probe Attenuation
|
1X, 10X
|
|
Supported Probe Attenuation Factors
|
1X, 10X, 100X, 1000X
|
|
Maximum Input Voltage
|
150VRMS
|
|
Measurement
|
|
Cursor
|
Voltage difference between cursors: △V
|
|
Time difference between cursors: △T
|
|
Automatic Measurements
|
Frequency, Amplitude
|
|

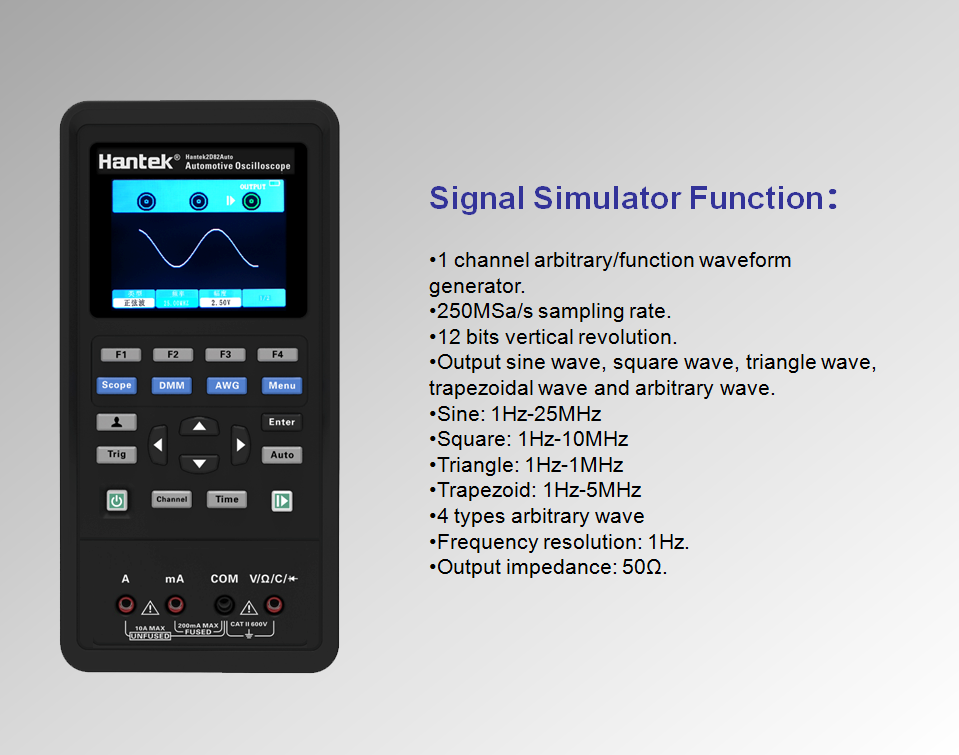

Arbitrary Waveform Generator Mode
|
|
Waveform Frequency
|
Sine: 1Hz~25MHz
|
|
Square: 1Hz~10MHz
|
|
Ramp: 1Hz~1MHz
|
|
EXP: 1Hz~5MHz
|
|
Sampling
|
250MSa/s
|
|
Amplitude
|
2.5Vpp(50Ω)
|
|
5Vpp(High impedance)
|
|
Frequency Resolution
|
0.001
|
|
Channel
|
1CH waveform output
|
|
Waveform Depth
|
512Sa
|
|
Vertical Resolution
|
12 bit
|
|
Frequency Stability
|
<30ppm
|
|
Output Impedance
|
50 Ω
|
|
DMM Testing Modes
|
|
Maximum Resolution
|
4000 Counts
|
|
DMM Testing Modes
|
Voltage,Current,Resistance,Capacitance,Diode &On-Off
|
|
Maximum Input Voltage
|
AC:600V, DC: 800V
|
|
Maximum Input Current
|
AC: 10A, DC:10A
|
|
Input Impedance
|
10MΩ
|
|
Measurement Term
|
Range
|
Accuracy
|
Resolution
|
|
DC Voltage
|
400.00mV
|
± (0.8% + 5)
|
100uV
|
|
4.000V
|
1mV
|
|
40.00V
|
10mV
|
|
400.0V
|
100mV
|
|
600.0V
|
± (1% + 2)
|
1V
|
|
Overload protection: 400mV: 250V, other: 600Vrms.
|
|
AC Voltage
|
4.000V
|
± (1.2% + 5)
|
1mV
|
|
40.00V
|
10mV
|
|
400.0V
|
100mV
|
|
600.0V
|
±(1.5% + 5)
|
1V
|
|
Frequency: 40Hz~400Hz;
|
|
Frequency of 400V and 600V: 40Hz~100Hz
|
|
DC Current
|
40.00mA
|
± (1% + 2)
|
10uA
|
|
200.0mA
|
± (1.5% + 2)
|
100uA
|
|
4.000A
|
± (1.8% + 2)
|
1mA
|
|
10.00A
|
± (3% + 2)
|
10mA
|
|
Overload protection:
|
|
self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
|
|
AC Current
|
40.00mA
|
± (1.3% + 2)
|
10uA
|
|
400.0mA
|
± (1.8% + 2)
|
100uA
|
|
4.000A
|
± (2% + 3)
|
1mA
|
|
10.00A
|
± (3% + 5)
|
10mA
|
|
Frequency: 40Hz~400Hz;
|
|
self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
|
|
Resistance
|
400.0Ω
|
±(1% + 3)
|
0.1Ω
|
|
4.000KΩ
|
±(1.2% + 5)
|
1Ω
|
|
60.00KΩ
|
10Ω
|
|
400.0KΩ
|
100Ω
|
|
4.000MΩ
|
1KΩ
|
|
40.00MΩ
|
± (1.5%±3)
|
10KΩ
|
|
Overload protection: 220Vrms
|
|
Capacitance
|
40.00nF
|
±(3% + 5)
|
10pF
|
|
400.0nF
|
100pF
|
|
4.000uF
|
1nF
|
|
40.00uF
|
10nF
|
|
100.0uF
|
100nF
|
|
Overload protection: 220Vrms
|
|
Diode
|
0V~2.0V
|
|
On-Off
|
<50Ω
|
|
General Specifications
|
|
Display
|
|
Display Type
|
2.8 inch64K color TFT
|
|
Display Resolution
|
320 horizontal by 240 vertical pixels
|
|
Display Contrast
|
Adjustable
|
|
Power Supply
|
|
Supply Voltage
|
100V-240VAC, 50Hz-60Hz; DC INPUT: 5VDC, 2A
|
|
Power Consumption
|
<2.5W
|
|
Fuse
|
T, 3A
|
|
Battery
|
2600mA*2
|
|
Environmental
|
|
Operating Temperature
|
0~50 °C (32~122 °F)
|
|
Storage Temperature
|
-40~+71 °C (-40~159.8 °F)
|
|
Humidity
|
≤+104℉(≤+40°C): ≤90% relative humidity
|
|
106℉~122℉ (+41°C ~50°C): ≤60% relative humidity
|
|
Cooling Method
|
Convection
|
|
Altitude
|
Operating and
|
3,000m (10,000 feet)
|
|
Nonoperating
|
|
Mechanical Shock
|
Random Vibration
|
0.31gRMS from 50Hz to 500Hz, 10 minutes on each axis
|
|
Nonoperating
|
2.46gRMS from 5Hz to 500Hz, 10 minutes on each axis
|
|
Operating
|
50g, 11ms, half sine
|
|
Mechanical
|
|
Dimension
|
199 x 98x 40mm (L x W x H)
|
|
Weight
|
400g
|

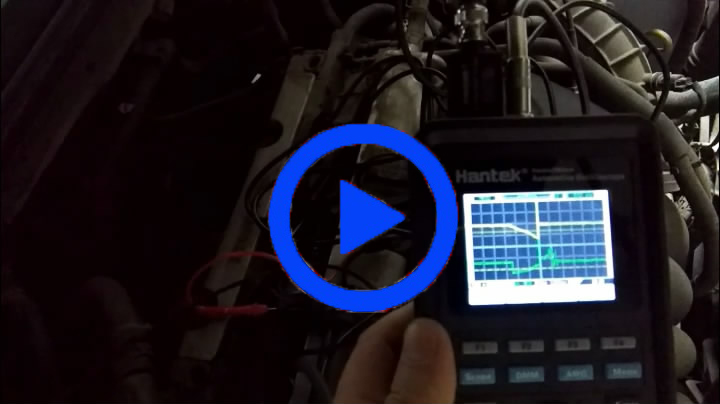

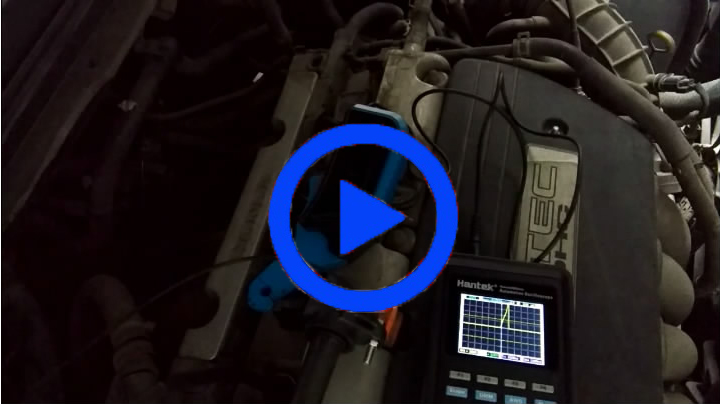

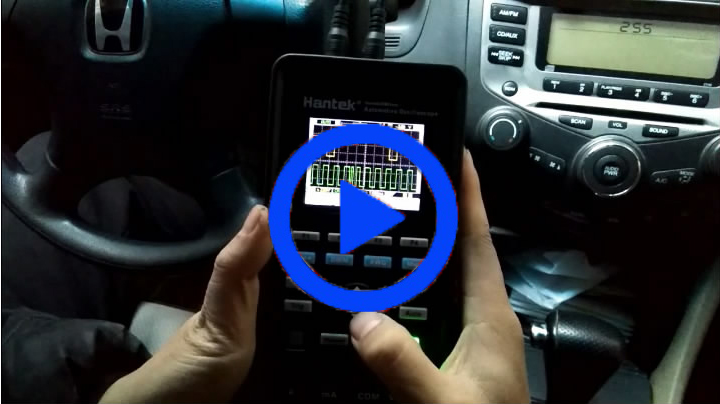

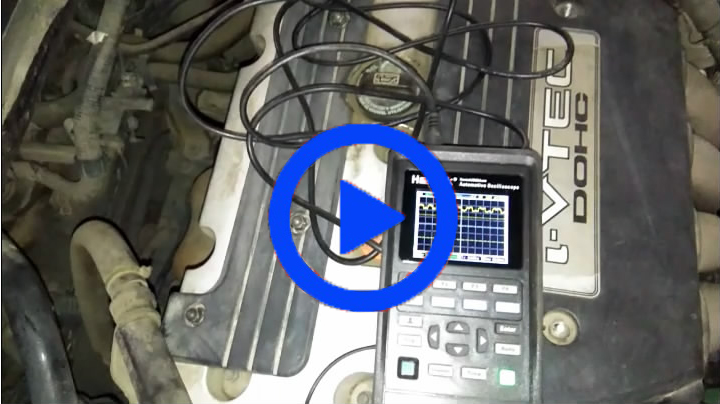

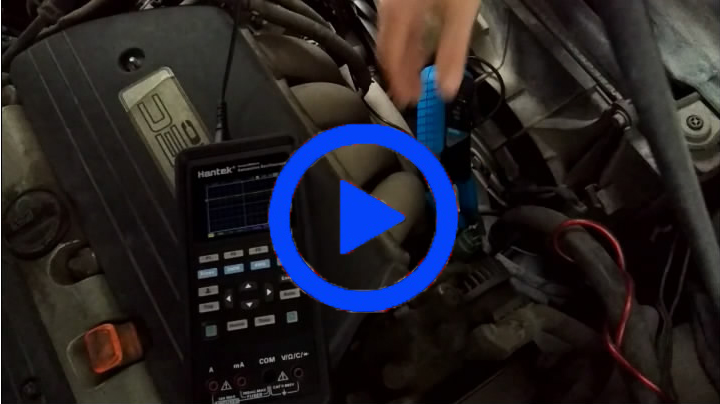

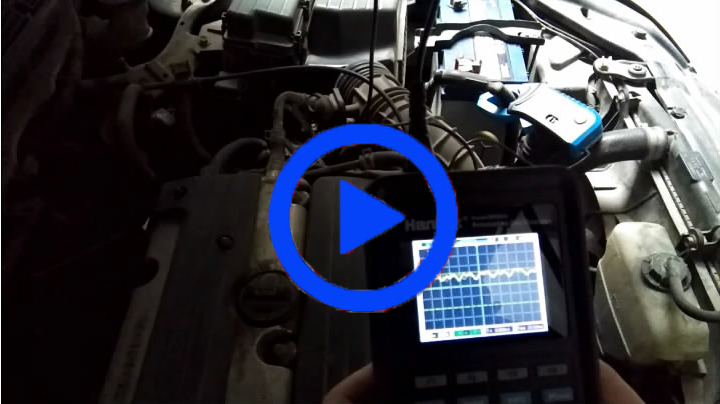

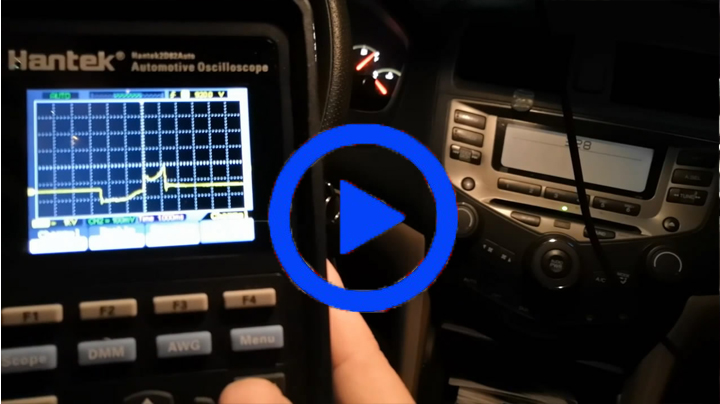

Primary ignition
voltage and crankshaft sensor test
High sensitivity and accuracy, showing clear, stronganti-overload capability, easy to carry
