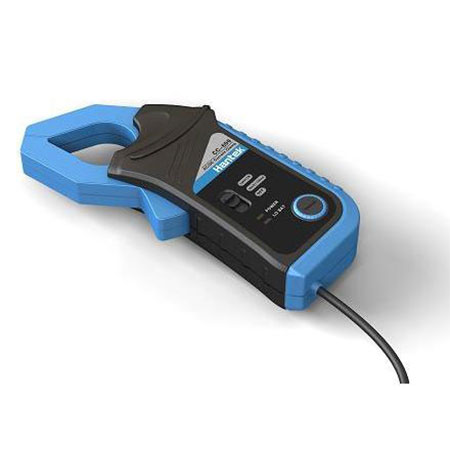

AC/DC Current Clamp, 400Hz Bandwidth, 650A, 1mV/A, 10mV/A

Feature

AC/DC frequency range: Up to 400Hz
Effective Measurement Range: 20mA to 650A DC
It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.
Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.

Application

Power circuit measurement and malfunction analysis;
Motor drive of frequency converter (or other electronics) measurement;
Power electronics equipments measurement.

Function Picture

Standard Accessories

Optional Connector

Feature

AC/DC frequency range: Up to 20 kHz
Effective Measurement Range: 20mA to 650A DC
It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.
Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, youˇre able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.

Application

 Power circuit measurement and malfunction analysis;
 Motor drive of frequency converter (or other electronics) measurement;
 Power electronics equipments measurement.

Optional Accessories：
