Hantek New USB Oscilloscope with 1GSa/s, 256M Memory Depth

August 5, 2013

1688

Feature:

256M memory depth;
2/4 channel and EXT trigger;
60-250MHz bandwidth;
1GSa/s real-time sampling rate;
8--36V Wide range of input voltage,suitable for vehicle power test;
USB 2.0 interface plug and play, LAN and WIFI option;
More than 20 kinds of automatic measurement function, PASS/FAIL Check function, is suitable for engineering application;
Excellent industrial design, similar interface with bench oscilloscope, easy to use;
Software support: Windows NT, Windows 2000, Windows XP, VISTA, Win7, Win8;
Supply DEMO code(VC, VB, LABIEW) and technical support.

Hardware Specifications

Model	DSO3102	DSO3102A	DSO3202	DSO3202A	DSO3104	DSO3104A	DSO3204	DSO3204A
VERTICAL
Analog Channels	2				4
Bandwidth	60MHz	100MHz	200MHz	250MHz	100MHz	150MHz	200MHz	250MHz
Rise Time	5.8ns	3.5ns	1.7ns	1.4ns	3.5ns	2.3ns	1.7ns	1.4ns
Input Impedance	Resistance: 1MΩ; Capacitance: 25 pF
Input Sensitivity	10mV/div to 5V/div
Input Coupling	AC/DC/GND
Vertical Resolution	8 bits
Memory Depth	10K-256M/CH
Maximum Input	400V (DC+AC Peak)
HORIZONTAL
Real-Time Sampling Rate	1GSa/s
Time Base Range	5ns/div to 1000s/div(1-2-5 sequences)
Time Base Precision	±50ppm
TRIGGER
Source	CH1, CH2, EXT				CH1, CH2,CH3, CH4, EXT
Mode	Edge, Pulse,Video, Alternative
Auto Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement	Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process	+,- , x,÷, FFT, Invert
Voltage Range	10mV to 5V/div @ x 1 probe; 100mV to 50V/div @ x 10 probe; 1V to 500V/div @ x 100 probe; 10V to 5000V/div @ x 1000 probe; 100V to 50000V/div @ x 10000 probe; 200mV to 100V/div @ 20:1
Current Range	CC65(20A),CC65(60A),CC650,CC1100
FFT	Rectangular,Hanning,Hamming,Blackman Window
Math	Adition,subtraction,multiplication,division
INTERFACE	USB 2.0(Lan ,WIFI Optional)
POWER SOURCE	8--36V Wide range of input voltage,suitable
Volume	255 x 190 x 45 (mm)
Weight	1Kg

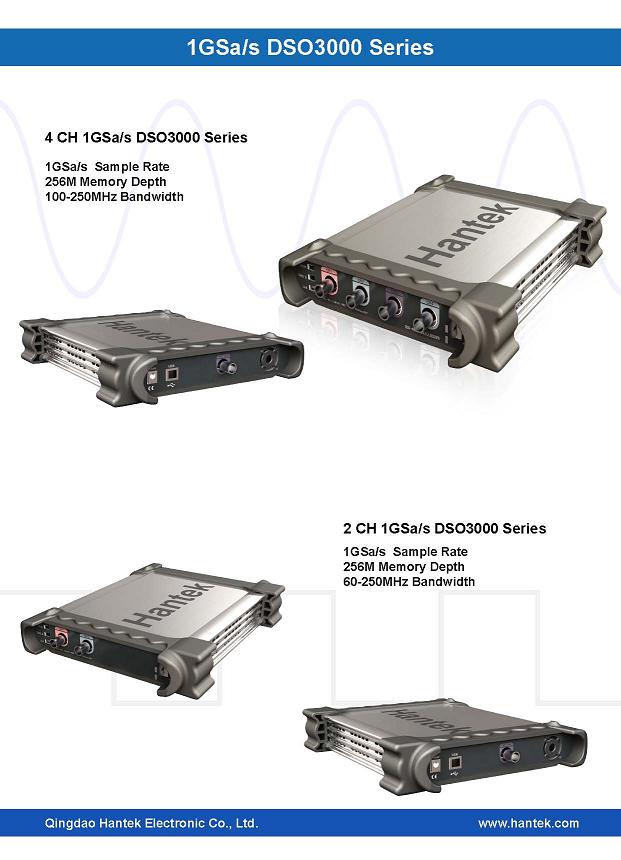

Function Picture
