Hantek New Bluetooth/USB Wireless Data Logger

January 31, 2013

2133

Feature

Long time record voltage, current, resistance, capacitance and on-off etc. in real time, and
create trend curves.
Safe electrical isolation, and true RMS measurement.
Plug play USB interface, build-in lithium battery, support bluetooth wireless transmission.

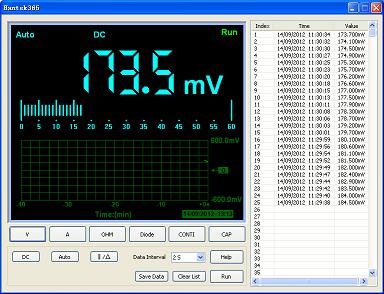

Simple, handy and flexible control software.
Support Android system mobile phone and tablet computer.
Software support: Android(mobile), Windows 2000, Windows 7, Windows XP.

Standard Accessories

Function

Technical Specifications

Function	Range	Accuracy	Resolution
DC Voltage	60.00mV	±1% ±1 digit	10uV
	600.00mV		100uV
	6.00V		1mV
	60.00V		10mV
	60.00V		100mV
	800V		1V
AC Voltage	60.00mV	±1%±3 digit	10uV
	600.00mV		100uV
	6.00V		1mV
	60.00V		10mV
	600.0V		100mV
DC Current	60.00mA	±1.5%±1 digit	10uA
	600.00mA	±1%±1 digit	100uA
	6.000A	±1.5%±3 digit	1mA
	10.00A	±1.5%±3 digit	10mA
AC Current	60.00mA	±1.5%±1 digit	10uA
	600.00mA	±1%±1 digit	100uA
	6.000A	±1.5%±3 digit	1mA
	10.00A	±1.5%±3 digit	10mA
Resistance	600	±1%±3 digit	0.1Ω
	6.000 K	±1%±1 digit	1Ω
	60.00 K		10Ω
	600.0 K		100Ω
	6.000 M		1KΩ
	60.00 M	±1.5%±3 digit	10KΩ
Capacitance	40.00nF	±1%±1 digit	10pF
	400.00nF		100pF
	4.000uF		1nF
	40.00uF		10pF
	400.0uF		100pF
	Attention: The smallest capacitance value that can be measured is 5nF
Diode	0V~2.0V
