New Products

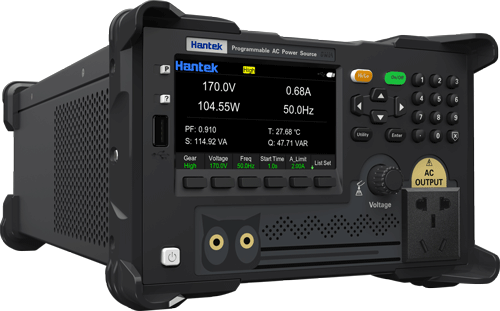

On April 15, 2025, Qingdao Hantech officially released the oscillating inverter power supply HAP11L500/HAP11L1000, which, as a professional test equipment combining high-precision output, intelligent interaction and industrial-grade reliability, redefines the performance benchmark of the inverter power supply in complex load test scenarios by virtue of its innovative waveform display and dynamic adjustment capability, providing more efficient test solutions for the R&D of electronic products, industrial manufacturing and new energy fields. It provides a more efficient test solution for electronic product development, industrial manufacturing and new energy field.
Products Overview
Real-time presentation of the output waveform, can visualize the output distortion and noise caused by inductive and capacitive loads. With output voltage recording function, it is convenient to analyze the working status of the load and troubleshooting. Equipped with USB, RS232/485 interface and LAN interface as standard, supporting SCPI communication protocol, which makes it easy to set up automatic test system. The length of output slow start can be set according to demand, effectively avoiding the power-on shock to different loads. Adopting high-quality sheath design, which is not only beautiful but also easy to move and protect. Equipped with high-definition color LCD screen, clear and intuitive display. Using digital control and high-frequency pulse width modulation technology, fast response speed, high output accuracy, pure waveform, strong reliability. With short circuit, over-current, over-voltage, overheating and other multiple protection functions. Widely used in electronic products, medical equipment, motors, lighting equipment and new energy and other fields, fully meet the product design and development, production line testing, quality assurance testing, aging life and other types of testing needs.
Product Features

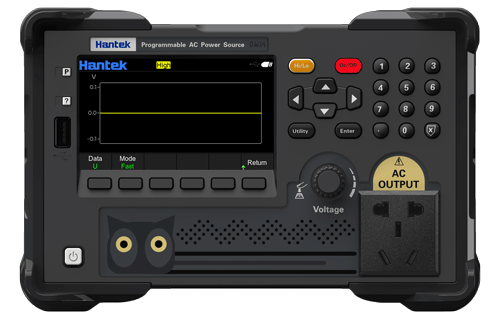

Real-time Waveform Display
4.3-inch high-definition color LCD screen intuitively presents the output voltage waveform. Users can monitor the waveform distortion and noise interference caused by capacitive/inductive loads in real time, and quickly locate the abnormal working conditions of the equipment.

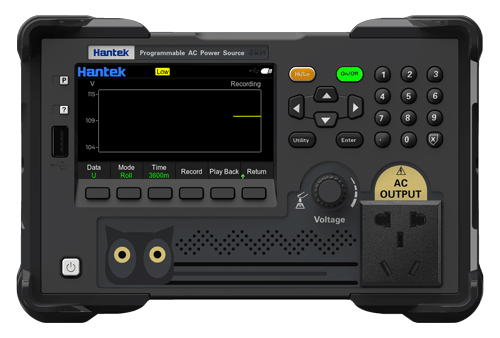

Output Voltage Recording
The 30-day output voltage recording function supports long-cycle load state retrospective analysis, which significantly improves the efficiency of troubleshooting and product aging test.

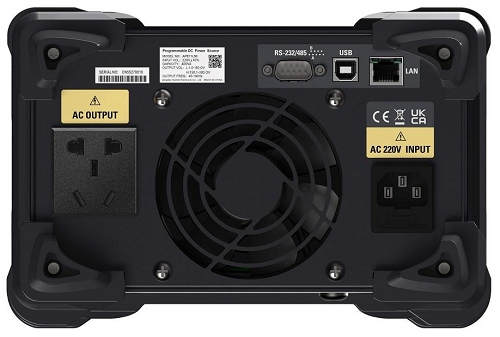

Rich communication interface
Standard USB, RS232/485 interface, optional LAN interface, support SCPI communication protocol, easy to set up automatic test system.
LIST sequence output
LIST sequence output function, you can set up to 10 groups of sequence output to meet diversified testing needs.

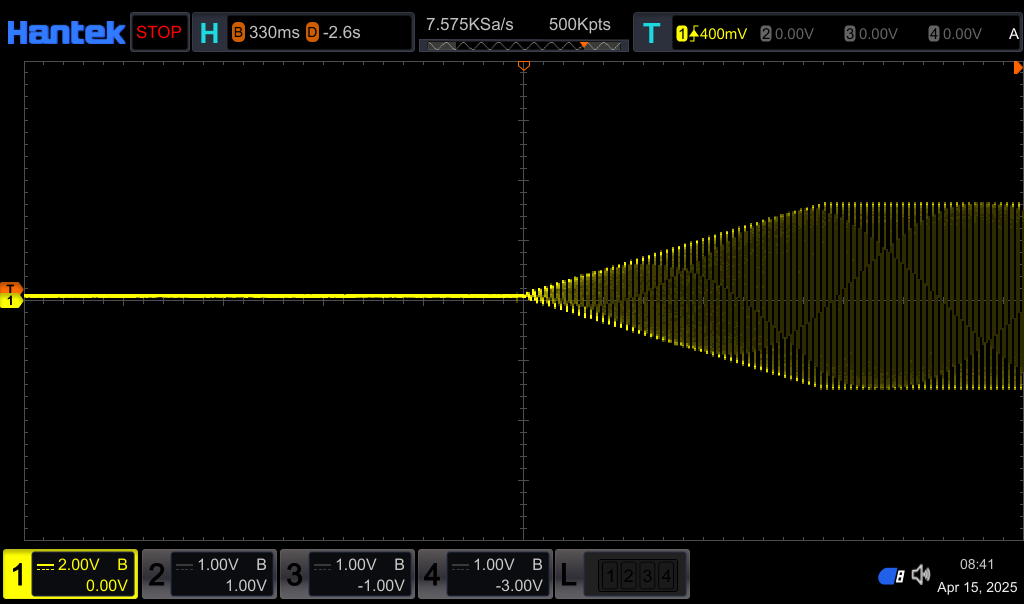

Start-up time can be set
The output slow start duration can be set on demand, effectively avoiding the power-on shock to different loads.
Non-constant jump voltage
The output voltage can be adjusted on-line without disconnecting the jumping voltage. Adopting high-quality sheath design, which is not only beautiful but also easy to move and protect.

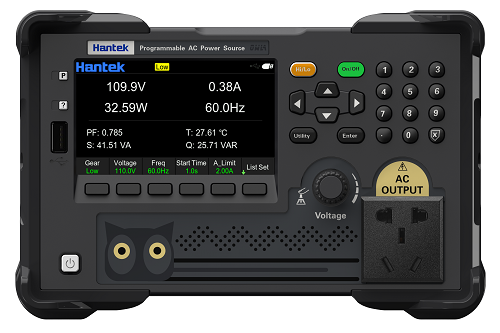

Colorful and bright LCD display
Equipped with high-definition color LCD screen, clear and intuitive display. Using digital control and high-frequency pulse width modulation technology, fast response speed, high output accuracy, pure waveform and high reliability. With short circuit, over-current, over-voltage, overheating and other multiple protection functions.

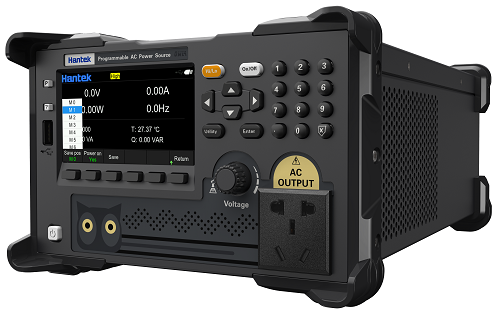

10 groups of memory functions
Parameters such as preset voltage and frequency can be saved or called up with one key.

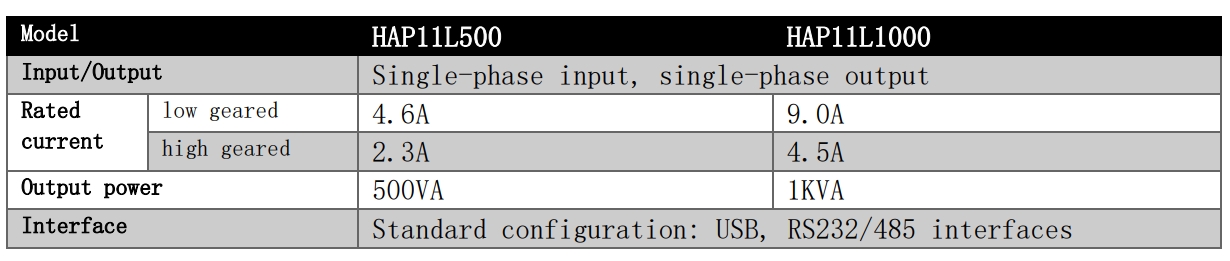

Product Model
In the application field, HAP11L500/HAP11L1000 inverter power supply can fully meet the needs of product design and development, production line testing, quality assurance testing, aging life and other types of testing needs, and its wide applicability will provide strong support for product quality improvement and technological innovation in various industries.
Contact Us
Currently, the HAP11L500 (500VA) and HAP11L1000 (1000VA) models are open for ordering with interface extension service. For more information, please visit the official website or contact the technical support team.
Product official website: https://hantek.com.cn/products/detail/13325 Technical support team: 0532-55678770/72/73
