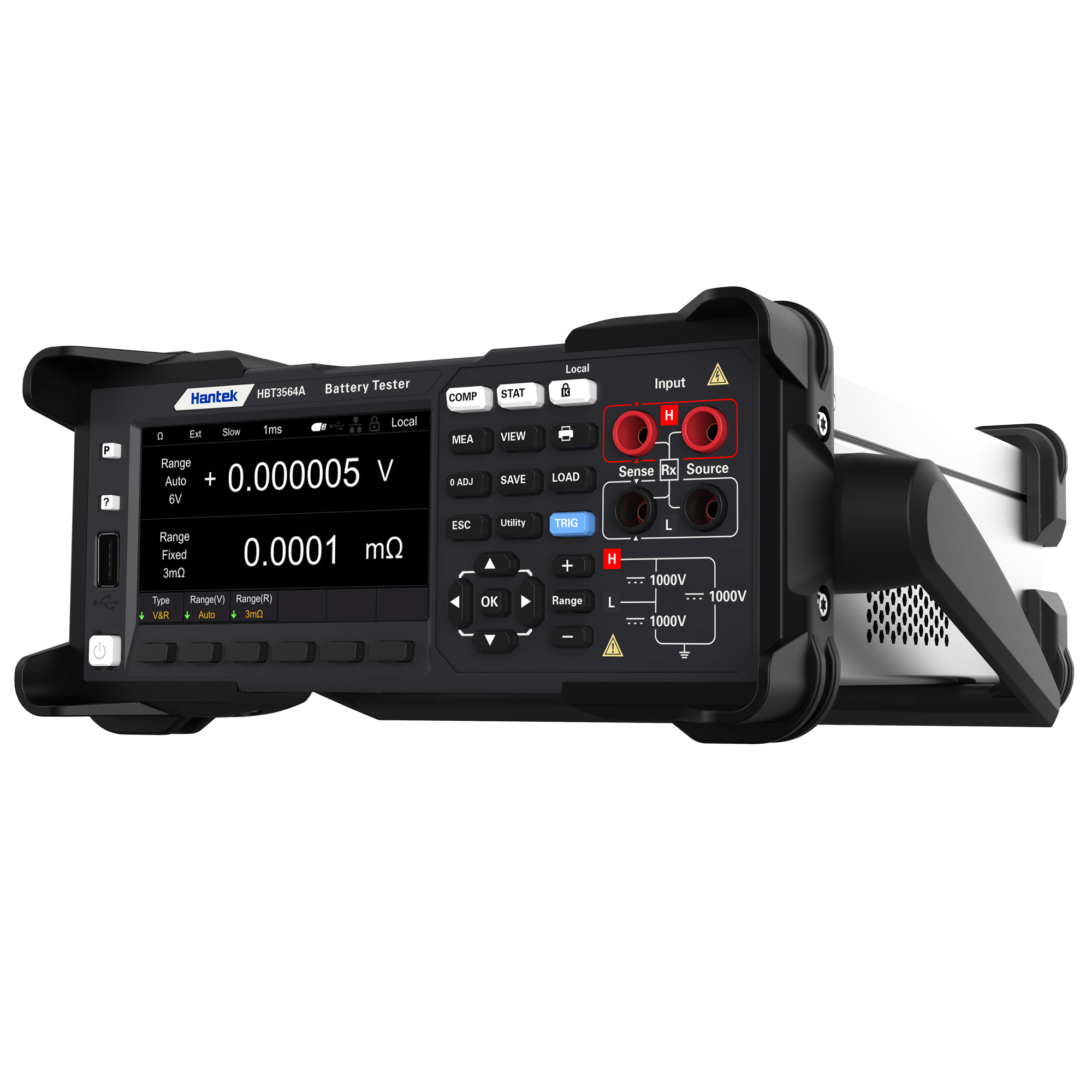

6 1/2-bit reading high -resolution internal resistance testing test instrument is a battery internal resistance tester with high accuracy and rapid measurement characteristics.
1 μV voltage resolution, 0.1 μΩ resistor resolution, has high precision, high speed, and suitable for various battery types.
Standard RS232/485, LAN, EXT I/O, USB Host, USB Device, ANALOGOUTPUT interface, suitable for more testing scenarios.

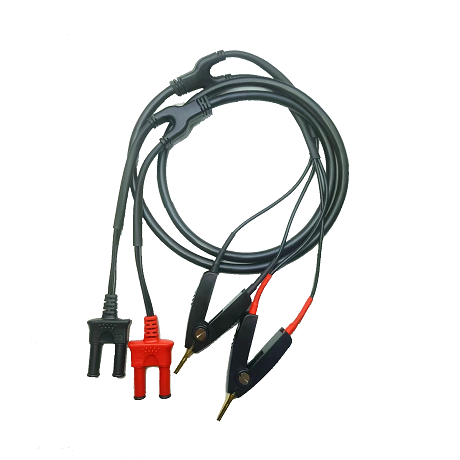

Using AC 4 -terminal method, the impedance can not be affected by the impedance of the test line during the impedance measurement.
It has independent comparison functions for resistance and voltage, while displaying the internal resistance and voltage of the battery.
Short -circuit zero adjustment function, remove the bias voltage of the instrument or the error caused by the measurement environment.
Support U disk screenshots to save functions, and you can upgrade the instrument program through the U disk.
Sampling rate: Fast/Horotelic/Slow, with a maximum speed of approximately 40 ms for high-speed measurement.
Internal impedance measurement range: 3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3.6 kΩ.
The full range of voltage measurement covers: 110V/210V/360V.
Draw a normal distribution diagram and visually observe the normal distribution of the measurement results.
The measurement results can be easily saved to a USB drive, making it convenient for subsequent data analysis and processing.

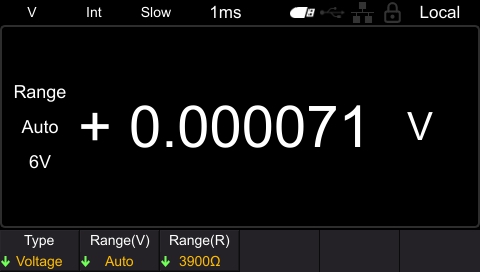

High precision and wide range

6 1/2, 1 μV voltage resolution, 0.1 μΩ resistor resolution, resistance measurement range of 0 ~ 3.6kΩ, with high -precision, quickly measured characteristic battery internal resistance testing instrument, covered most large battery packs to the button battery battery Test requirements, accurately meet your needs.

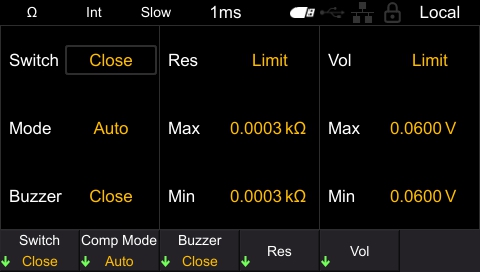

Comparator function

Resistance and voltage are independent, and the function of displaying and output the measurement results will help you better understand the working status of your circuit or equipment.

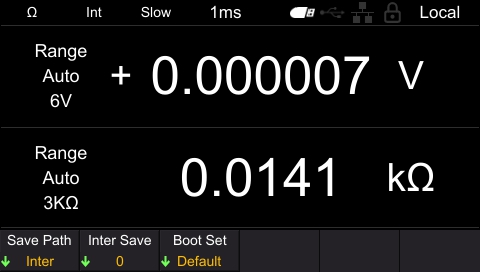

Save/Load Function

The startup settings can be saved to the internal or U disk. There is no need to perform tedious application settings every time you use. Press the corresponding power -on settings button to easily load the previously saved application settings.

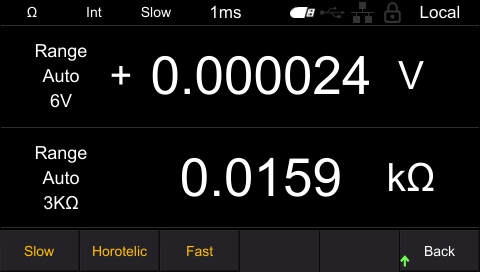

Three sampling rates

The sampling rate can be changed in three stages (Fast/Horotelic/Slow), and the appropriate sampling rate can be selected according to different testing needs. The fastest high-speed measurement can be about 40 ms. The lower the sampling rate, the higher the testing accuracy.

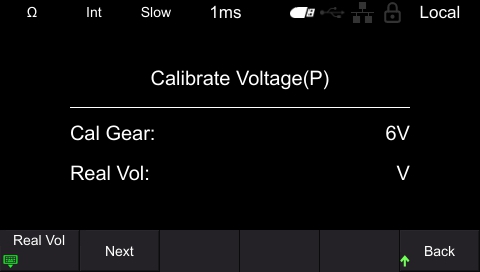

Calibration function

The calibration is divided into voltage calibration and resistance calibration, which is used to compensate the bias voltage or gain drift of the internal circuit of the instrument to improve the test accuracy.

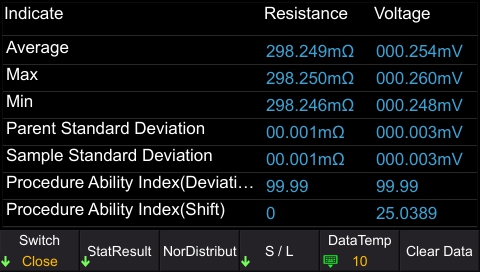

Statistical function

Calculate various statistical indicators, including but not limited to Average, Max, Min, Parent Standard Deviation, etc., to easily draw a normal distribution map and help you visually observe the normal distribution of measurement results

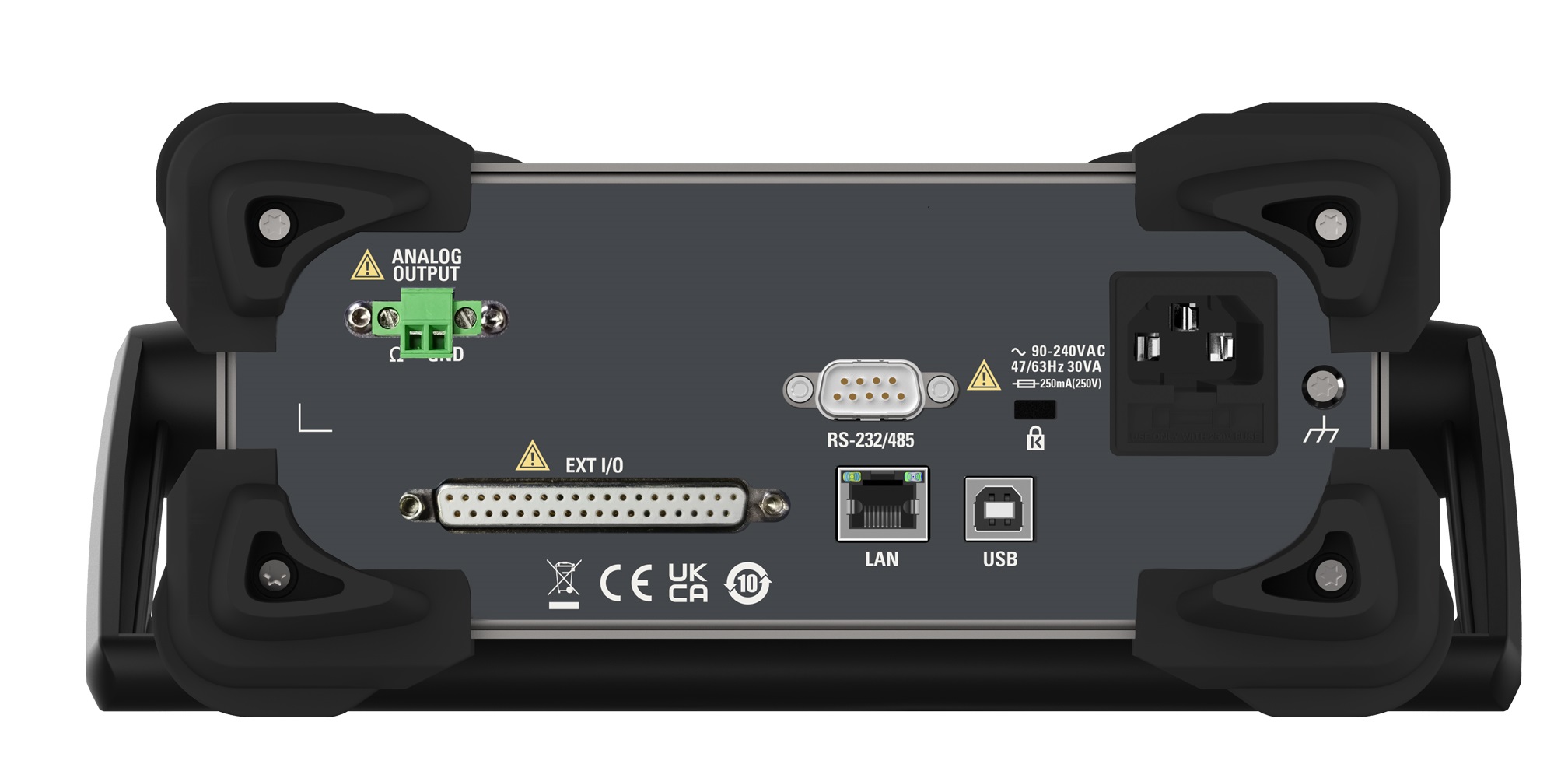

Rich configuration interfaces

Standard configuration includes RS232/485, LAN, EXT I/O, USB Host, USB Device, and ANALOGOUTPUT interfaces. Rich in interfaces, it is a measuring instrument suitable for building battery production inspection circuits.

Model	Resistance Resolution	Resistance Range	Resistance Range	Voltage Resolution	Voltage Range	Voltage Accuracy	Interface
HBT3561A	0.1μΩ	0~3.6kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3600Ω）	1μV	0~110V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT
HBT3562A	0.1μΩ	0~3.6kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3600Ω）	1μV	0~210V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT
HBT3563A	0.1μΩ	0~3.6kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3600Ω）	1μV	0~360V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT

Model		HBT3561A		HBT3562A	HBT3563A
Resistance	Range	3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3600Ω
	Measuring Range	0~3.6kΩ
	Min. Resolution	0.1μΩ
Voltage	Range	6V/60V/110V		6V/60V/210V	6V/60V/360V
	Measuring Range	0-110V		0-210V	0-360V
	Min. Resolution	1μV
Rating Input Voltage		DC土110VDC		DC土210VDC	DC土360VDC
Current Frequency		1KHz
Input Impedance		3mΩ~3600Ω 1MΩ
Open Terminal Voltage		3mΩ~3600Ω 12V peak
Detect Abnormal Test Results and Display (Contact detection)		Detection content: Abnormal connection between SOURCE HIGH and LOW Abnormal connection display between SENSE HIGH LOW: [------]
Sampling	Sample Rate	FAST/MEDIUM/SLOW(3rd gear)
	Sample Time	Function	Frequency	FAST	MEDIUM	SLOW
		ΩV	50Hz/60Hz	60ms	300ms	600ms
		Ω	50Hz/60Hz	40ms	200ms	400ms
		V	50Hz/60Hz	40ms	200ms	400ms
Time	Response Time	Measurement response time: approximately 5ms
	Total Measurement Time	Time required for the entire measurement: sampling time+response time
Comparator Function Module	Comparator Function	ON/OFF (shared resistance and voltage)
	Comparator Settings	Comparator mode: HIGH · LOW/REF ·% Upper and lower limit values: 0-3600 (resistance)/0-360 (voltage) Reference value: 0-3600 (resistance)/0-360 (voltage) Precent(%): 0.00%~99.99% (% range set to+/- universal) Buzzer: Close/HL/IN/BT1/BT2 Comp mode: AUTO/Manual
	Compare	Compare Result: Hi/IN/Lo (independent judgment of resistance and voltage) PASS/UNPASS judgment: Compare the resistance judgment result with the voltage judgment result AND operation, followed by PASS/UNPASS output (EXT I/O output) Test outlier determination: OF Hi determination -OF Lo determination Test Exception - No Judgment (No Judgment)
Absolute Function		Under this function, even if the battery polarity is reversed, it can be compared based on absolute values
Average Function		Output the average measurement value, which can reduce the deviation of the displayed value. The average frequency is 1, 2, 4, and 8 times
Delay Time		0-9999 ms
Calibrate		Voltage calibration/resistance calibration, used to compensate for bias voltage or gain drift within this instrument
Adjustable Zero Range		Resistance measurement: -1000 to 1000 count values Voltage measurement: -1000~1000 count values (i.e. zero range is less than or equal to ± 1000 dgt.)
Trigger		Int/Ext/Man
Save		ON/OFF/Clear, the measured values can be saved to the USB flash drive through EXT I/O, buttons, and commands
Statistics	Statistical Operations	ON/OFF/Clear
	Operational Content	Average, Max, Min, Parent Standard Deviation, Sample Standard Deviation, Procedure Ability Index (Shift), Procedure Ability Index (Deviation)
	Arithmetic Trigger	Perform statistical calculations on measured values through EXT I/O, buttons, and commands
Measurement Settings Saving and Reading	Function	Can save and read measurement settings
	Save Settings	Test function, resistance range, voltage range, automatic range setting, using rate, trigger source, delay setting, average setting, comparator settings, statistical operation settings
Keytone		ON/OFF
Communication Interface		HBT3000 series: standard RS232/485, USB, LAN, IO, ANALOGOUTFUT.
