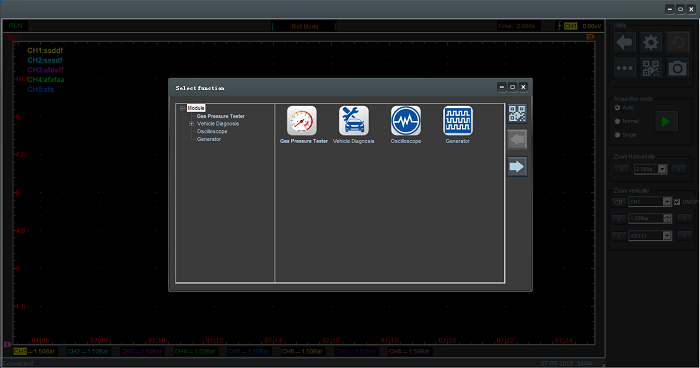

8
channels pressure test analyzer is mainly used for the performance test of main
pump,sub-pump,door pump,quick release valve,4 loops and etc. in braking system
of big bus and medium/heavy truck.It can be used as the testing equipment in automobile repair,and is especially suitable for repairing

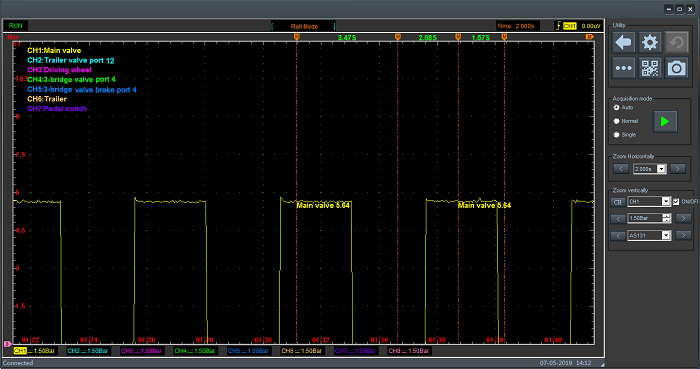

and testing the air circuit of city bus and heavy truck.It can record the pressure
curve of each testing point in the braking process in real time.,such as the
pressure curve of main pump,main vehicle relay valve,trailer valve and three
bridge emergency brake valve,so we can judge if the
pump valve in the vehicle is in fault condition,if the air circuit
of brake is blocked,and if the distribution
of braking force of the main trailer is reasonable.
The
air circuit test of big bus and medium/heavy truck:
-
Test range: main pump,main
vehicle relay valve,trailer valve and three bridge emergency brake valve,regulating
valve.
-
Suitable
for the test of working performance and working condition of main pump valve,sub-pump
chamber,quick release valve four circuits,various pump valves and orther
devices in automobile brake system.
-
Main pump valve: air
cylinder inflates the relay valve through main pump valve,test the time and if
there is a leakage.
-
Four circuits:the
test of leakage and the test of air pressure fault of switch
-
Sub-pump:the test
of inflation time of single/double cavity and leakage.
-
Relay
valve:the test of leakage,inflation and exhaust time.
-
Quick
release valve: air cylinder passes through quickly release to sub-pump, test
its air pressure saturation time and leakage.
-
Smaller
volume,portable,suitable for debugging and repairing in the scence.
-
Charged by
laptop,no external power required.
-

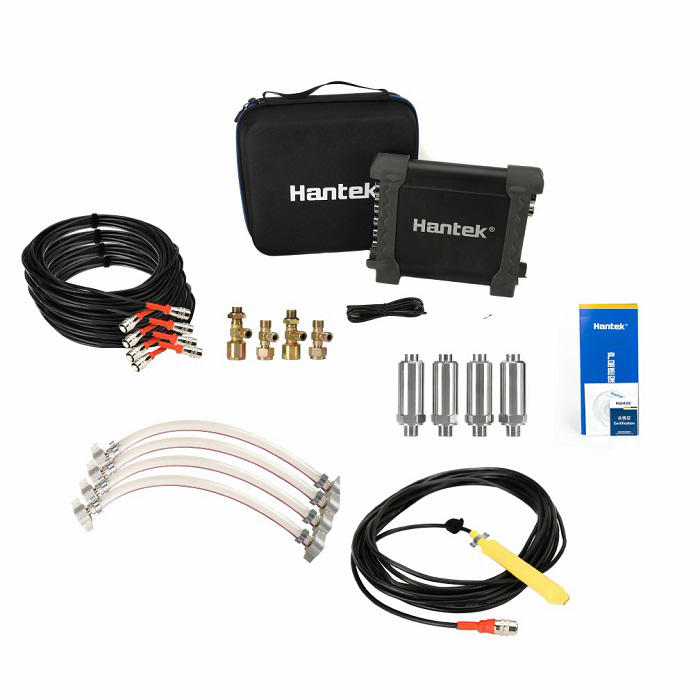

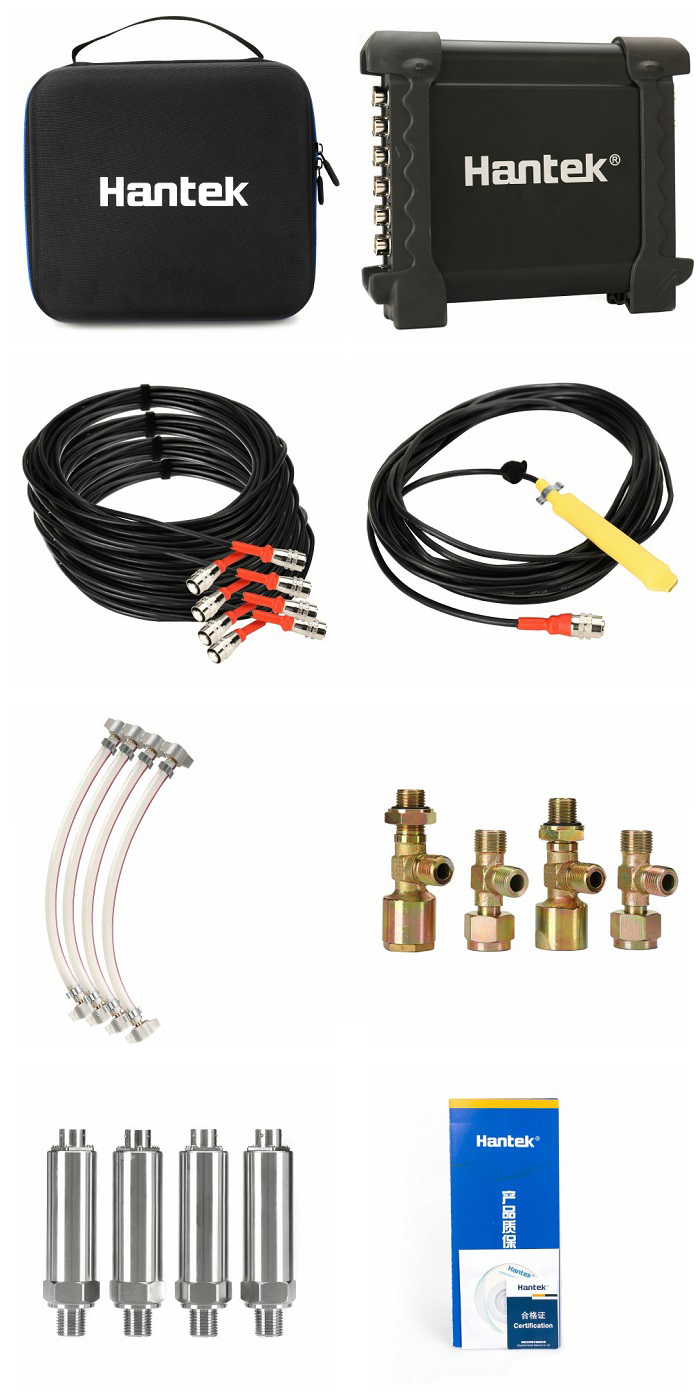

Standard epuipped
brake pedal switch,record the starting point of braking precisely.
-
Standard equipped
multi-fuction diagnosis adapter,can test air circuit of most of buses and
medium/heavy trucks through combinations of various types of adapters.
-
Standared equipped
common-use size test hose,the internal thread of which is M16*1.5.
-
It can record 7
circuits of pressure signal and 1 circuit of brake pedal signal in real time
and collect them synchronously.
-

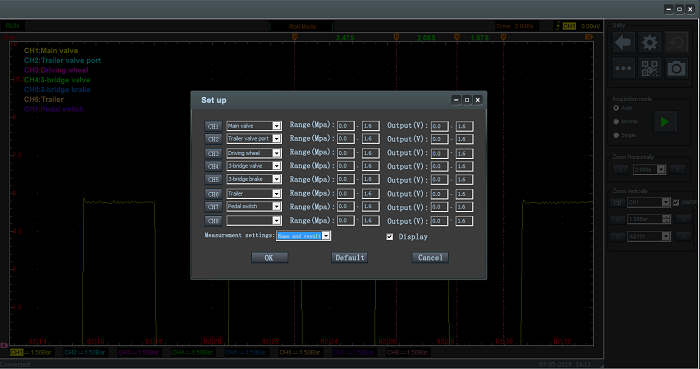

It is
flexible in parameter setting,the name,curve color and thickness of each
channel’s signal can be customized.
-
Adding to self-correcting function,it can ensure the measurement accuracy of
different sizes of air pressure sensors.
-
Equipped high
accuracy air pressure sensor,the mobile measurement can be accurate.
-
Support replaying
the record and printing the test report.

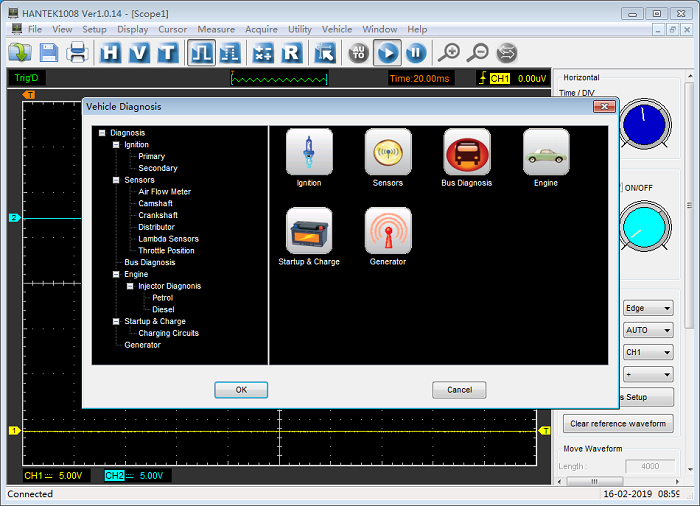

Vehicle Diagnosis :
-
First Diagnosis(Cranking Exhaust Diagnosis)
-

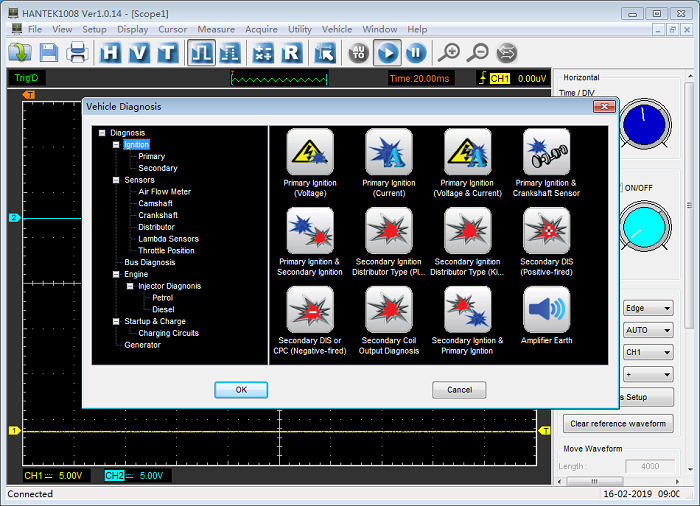

Ignition Action(Current/Voltage)
-

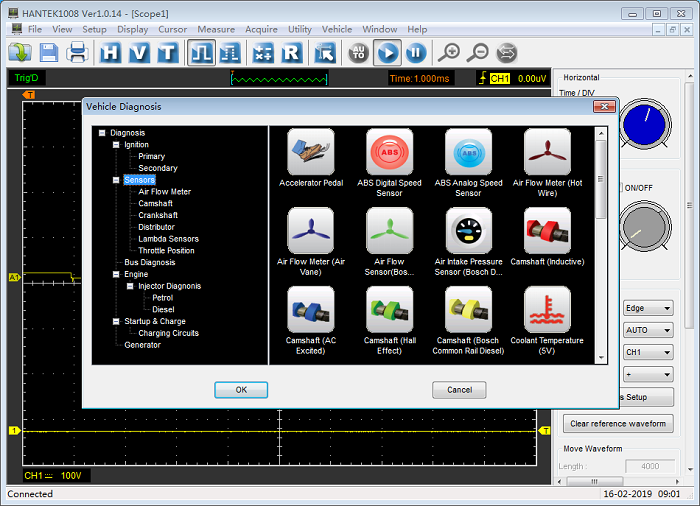

The Sensor(Air Flow Meter,Camshaft,Crankshaft)
-

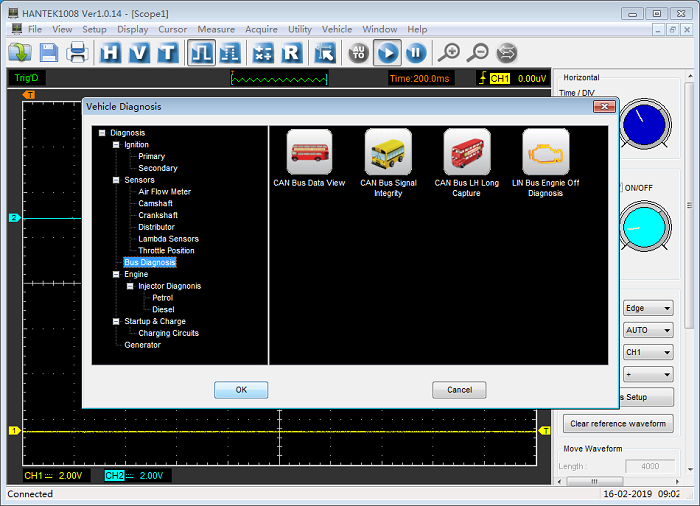

Bus Diagnosis(CAN Bus Data View)
-

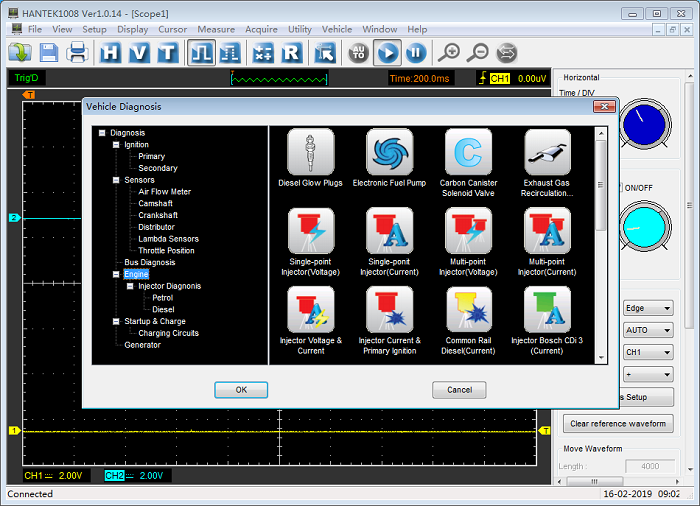

Performer(Petrol/Diesel)
-

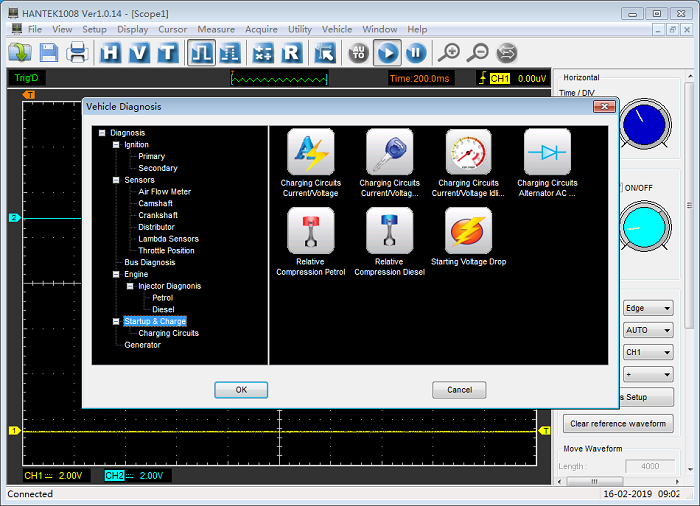

Startup&Charge(Charging Circuits Current/Voltage)

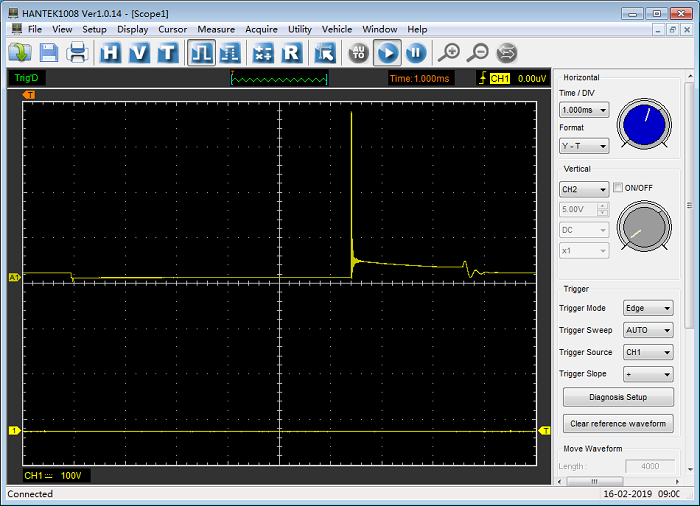

Oscilloscope:
-
8
channels oscilloscope,
-
12 bits
vertical resolution
-
USB interface,plug and play, and no need
extra power supply
-
More than 20 kinds of measurement
items
-
Software
support :WIN10/ WIN8/WIN7

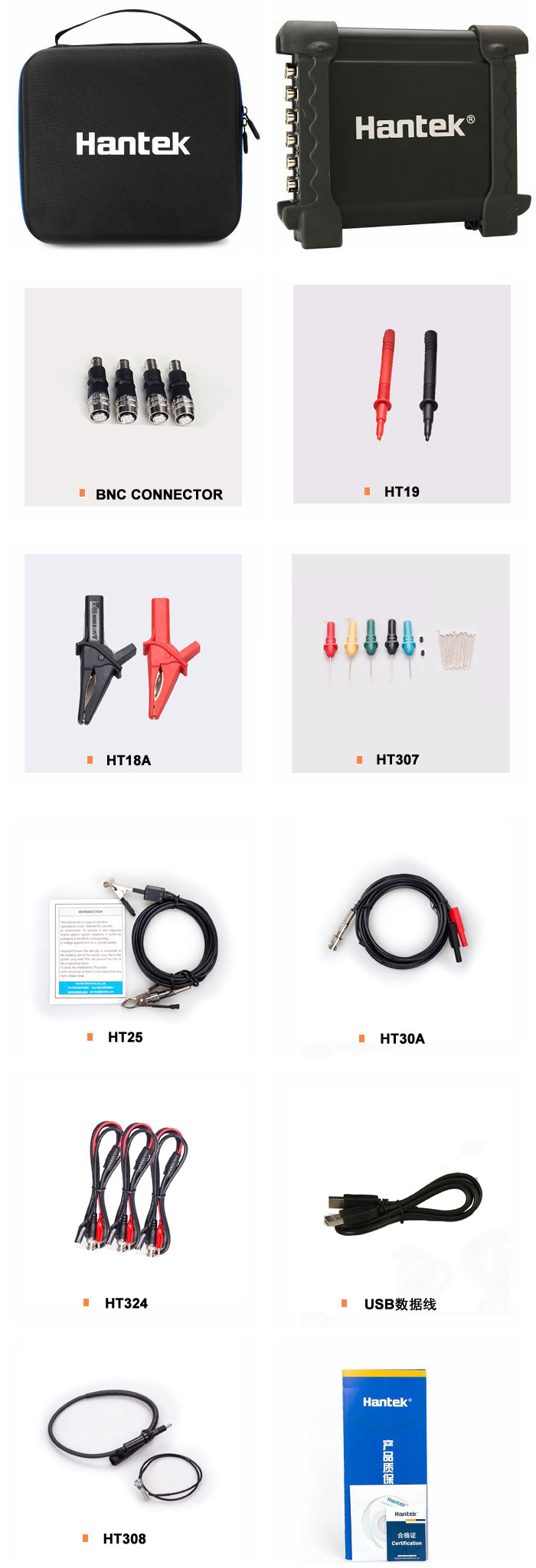

Optional Accessory:
